Dock Seals

Name: Dock Seals
Brand: Beacon
Price: 1999.16 USD
Availability: InStock

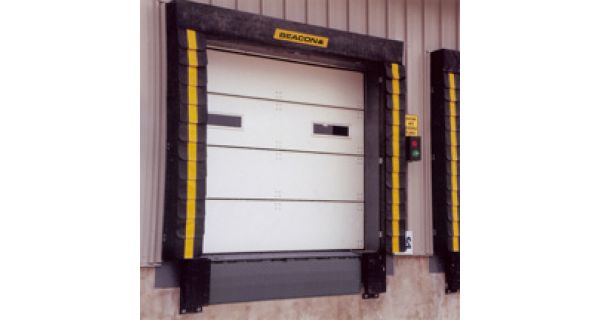

Dock Seals - Dock Compression Seals - B100-8x8 & B100-8x9 series

Beacon® B100-8x8 Series

Dock Seals include a fixed head pad utilizing compression as a seal between the building and truck trailers during loading and unloading. These units keep out cold, wind, dust and fumes. This series features wrap-around style material to protect wood and foam from outside elements.

Starting at: $1,999.16

See chart below and click a model number

Product Details

Construction: Designed with fixed head pad for compression. The units are constructed from solid wood and solid foam.
Projection: The 10" projection seal is to be used with a 4" to 6" dock bumper projection. The 20" projection seal is to be used with an Edge of Dock Leveler inclusive with a 14" to 15" dock bumper projection. Special projections available.
Size: These two different dock door seal size units are designed to fit an 8' wide x 8' high or an 8' wide x 9' high opening.
Installation: This series includes all required mounting brackets.
Color: Standard material color is Black, other colors include grey, green and tan. A safety yellow guide strip is standard.
Standard: Beveled wedge side pads are standard helping seal and fill the gap of off center narrow and wider trucks if not backed in center, helping eliminate trucking error. Square side pads available as an option when truck loading needs to be packed to the end.
Options: The unit is available with an optional steel mesh armor to assist in theft protection, tapered seals for inclining or declining driveways and wear pleats.
Materials: Dock Door Seal models are available in vinyl-coated nylon, Hypalon-coated nylon, Neoprene-coated nylon.

Documents

Dock Door Seal with Fixed Head Pad - B100-8x8 Series
Model No.	Door Opening (Wide x High) Size	Door Seal Projection	Material Type	Material Thickness	Approach	Wall Set Back	Dock Height	Price
1) B100-130-8x8-10-40	8'x8'	10"	Vinyl-coated Nylon	40oz	Level	0"	48"	$2,563.08
2) B100-140-8x8-10-40	8'x8'	10"	Hypalon-coated Nylon	40oz	Level	0"	48"	$2,868.36
3) B100-150-8x8-10-22	8'x8'	10"	Vinyl-coated Nylon	22oz	Level	0"	48"	$2,520.68
4) B100-170-8x8-10-16	8'x8'	10"	Hypalon-coated Nylon	16oz	Level	0"	48"	$2,173.00
5) B100-180-8x8-10-16	8'x8'	10"	Vinyl-coated Nylon	16oz	Level	0"	48"	$1,999.16
6) B100-190-8x8-10-40	8'x8'	10"	Neoprene-coated Nylon	40oz	Level	0"	48"	$2,868.36

7) B100-130-8x8-20-40	8'x8'	20"	Vinyl-coated Nylon	40oz	Level	0"	48"	$2,955.28
8) B100-140-8x8-20-40	8'x8'	20"	Hypalon-coated Nylon	40oz	Level	0"	48"	$3,411.61
9) B100-150-8x8-20-22	8'x8'	20"	Vinyl-coated Nylon	22oz	Level	0"	48"	$2,346.84
10) B100-170-8x8-20-16	8'x8'	20"	Hypalon-coated Nylon	16oz	Level	0"	48"	$2,607.60
11) B100-180-8x8-20-16	8'x8'	20"	Vinyl-coated Nylon	16oz	Level	0"	48"	$2,564.14
12) B100-190-8x8-20-40	8'x8'	20"	Neoprene-coated Nylon	40oz	Level	0"	48"	$3,607.18
Dock Door Seal with Fixed Head Pad - B100-8x9 Series
Model No.	Door Opening (Wide x High) Size	Door Seal Projection	Material Type	Material Thickness	Approach	Wall Set Back	Dock Height	Price
13) B100-130-8x9-10-40	8'x9'	10"	Vinyl-coated Nylon	40oz	Level	0"	48"	$3,042.20
14) B100-140-8x9-10-40	8'x9'	10"	Hypalon-coated Nylon	40oz	Level	0"	48"	$3,042.20
15) B100-150-8x9-10-22	8'x9'	10"	Vinyl-coated Nylon	22oz	Level	0"	48"	$2,585.87
16) B100-170-8x9-10-16	8'x9'	10"	Hypalon-coated Nylon	16oz	Level	0"	48"	$2,173.00
17) B100-180-8x9-10-16	8'x9'	10"	Vinyl-coated Nylon	16oz	Level	0"	48"	$2,173.00
18) B100-190-8x9-10-16	8'x9'	10"	Neoprene-coated Nylon	40oz	Level	0"	48"	$2,129.54
19) B100-140-8x9-20-40	8'x9'	20"	Hypalon-coated Nylon	40oz	Level	0"	48"	$3,520.26
20) B100-150-8x9-20-22	8'x9'	20"	Vinyl-coated Nylon	22oz	Level	0"	48"	$2,781.44
21) B100-170-8x9-20-16	8'x9'	20"	Hypalon-coated Nylon	16oz	Level	0"	48"	$2,824.90
22) B100-180-8x9-20-40	8'x9'	20"	Vinyl-coated Nylon	16oz	Level	0"	48"	$3,042.20
23) B100-190-8x9-20-40	8'x9'	20"	Neoprene-coated Nylon	40oz	Level	0"	48"	$3,824.48
