Railcar Loading Ramp

Railcar Loading Ramp - Railroad Yard Ramps - B16SYS series

Beacon® BSYS Series

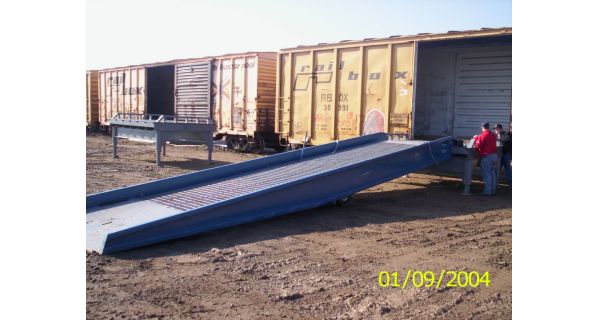

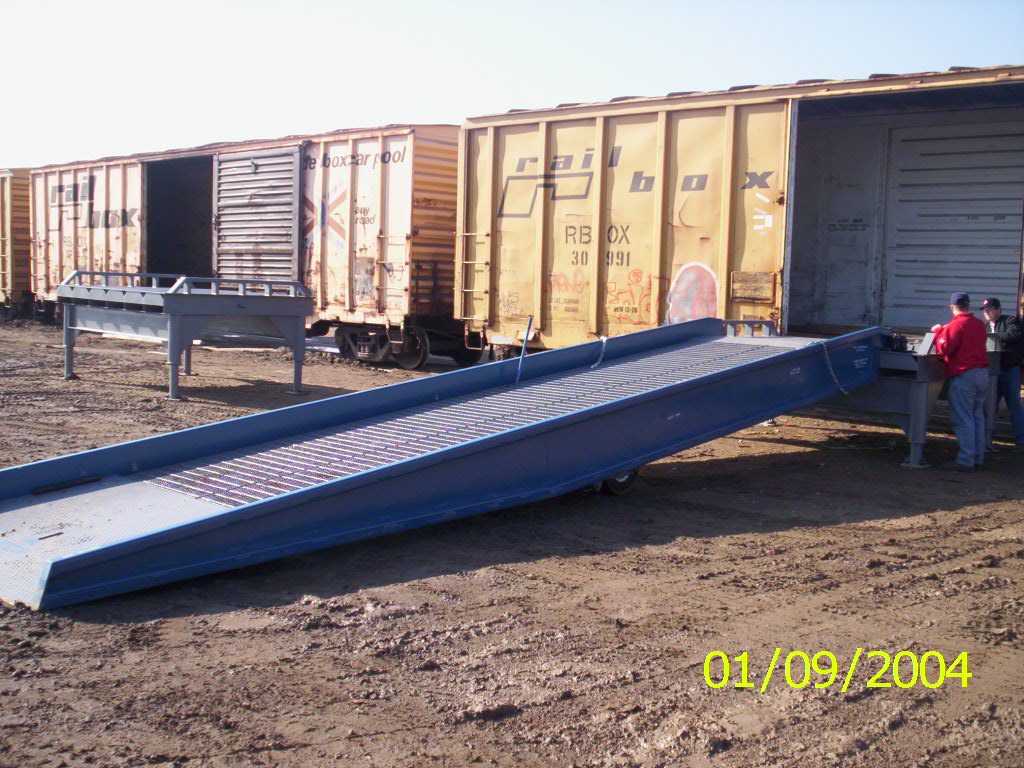

The Railcar Loading Ramp - Railroad Yard Ramps assist in loading and unloading of railcars in the field. They bridge the gap between the car and the ground for easy access.
Starting at: $11,870.62

See chart below and click a model number

Product Details

  • Construction: Heavy-duty welded steel construction.
  • Projection: Safety curbs are 8" on each side.
  • Size: The size ranges from 30' or 36' in length. The 30' model is straight and the 36" model has a 6' level off.
  • Operation: Dual pneumatic 18" hard rubber tire operation is standard.
  • Capacities: Each Railcar Loading Ramp unit has a dynamic capacity range from 16,000 lbs. to 60,000 lbs. to assist in loading.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
  • Note: Testing, adjustments, training and scheduled maintenance procedures by others.

Documents
Railcar Loading Ramp - BSYS Series
Model No. Capacity (LBS) Overall Width Usable Width Length Price
1) B16SYS7030 16,000 70" 64" 30' $20,215.90
2) B16SYS8430 16,000 84" 78" 30' $21,686.01
3) B20SYS7030 20,000 70" 64" 30' $20,801.02
4) B20SYS8430 20,000 84" 78" 30' $24,774.96
5) B25SYS7030 25,000 70" 64" 30' $23,738.81
6) B25SYS8430 25,000 84" 78" 30' $28,397.82
7) B30SYS7030 30,000 70" 64" 30' $26,176.81
8) B30SYS8430 30,000 84" 78" 30' $27,507.95
Railcar Loading Ramp Platform - BSYS Series
Model No. Capacity (LBS) Overall Width Length Price
9) B16SP88 16,000 8' 8' $11,870.62
10) B16SP812 16,000 8' 12' $17,799.84
11) B20SP88 20,000 8' 8' $13,282.22
12) B20SP810 20,000 8' 10' $15,681.22
13) B20SP812 20,000 8' 12' $16,380.92
14) B25SP88 25,000 8' 8' $14,588.99
15) B25SP810 25,000 8' 10' $18,236.24
16) B25SP812 25,000 8' 12' $22,127.29
17) B30SP88 30,000 8' 8' $14,086.76
18) B30SP810 30,000 8' 10' $18,540.99
19) B30SP812 30,000 8' 12' $22,249.19
Railcar Loading Ramp Platform-BSYS Series
Model No. Capacity (LBS) Overall Width Length Price
20) B16SP810 16,000 8' 10' $12,743.43
OPTION
Model No. Description Price
21) BSPPOCKET Platform Forklift Pockets $1,284.83
22) BSADKLEG Adjustable Legs for Platforms - Set of 4 $3,159.65

WarningPROP 65 WARNING

For California Residents: www.P65Warnings.ca.gov
Products on this page may lead to cancer or reproductive harm.


Complementary Products: Portable Rail Dock Plate is an alternate for rail car dock loading.
