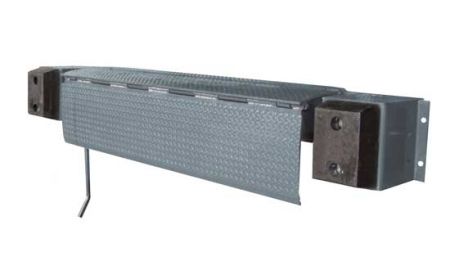

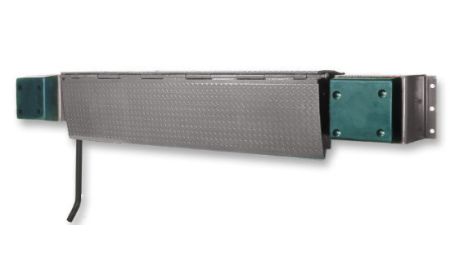

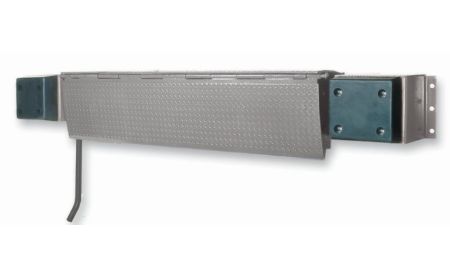

Manual Edge of Dock Leveler

Manual Edge of Dock - BBL Series

Beacon® BBL Series

The technology Manual Edge of Dock Leveler (EOD) compensates and bridges the gap between the dock and truck. An EOD leveler is commonly used in distribution centers, economical and cost efficient for loading and unloading operations. This BBL series is durable and heavy-duty requiring only 28 to 34 lbs. of push pull ease force to operate. Ease of installation requires curb angle or embedded channel by others at dock, no pit required. Call Beacon for assistance to help your order process.

Some Models ship 2 to 3 Weeks

Starting at: $2,276.43

See chart below and click a model number

Product Details

  • Construction: This series is constructed with a 2-1/2" distribution bar, three gussets, grease fittings and an adjustable torsion spring. (The BBL adjustable torsion spring is superior over the BBLE extension spring).
  • Size: This series features deck widths of 66", 72", 78” or 84". All models have a span of 27-3/4".
  • Operating Range: Features 5" above and 5" below the loading dock as operating range.
  • Color: Finish - Enamel base gray paint.
  • Usage: The edge of dock leveler is designed for applications when the dock and truck bed are close to the same height. The unit primarily bridges the gap between the dock and truck bed. The operating range compensates for small differences from the truck suspension during loading and unloading procedures.
  • Operation: Edge of Dock Levelers are designed for docks that are the same height as the truck bed bridging the gap
  • Capacities: Available in capacities of 20,000, 25,000, 30,000, or 35,000 lbs.
  • Standard: The Manual Edge of Dock comes standard with a 15" hinged lip as well as dock bumpers.
  • Limited Warranty: 2 year limited warranty.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
  • Note: There is no pit work required. Manual Edge of Dock units simply weld to the building 8" imbedded channel or to the optional formed angle and approach plate.

Documents



Manual Edge of Dock - BBL Series
Model No. Capacity Span Overall Width Deck Width Note Price
1) BBL-6620 20,000 lbs. 27¾" 104" 66" A $2,276.43
2) BBL-7220 20,000 lbs. 27¾" 110" 72" A $2,399.82
3) BBL-7820 20,000 lbs. 27¾" 116" 78" A $2,630.14
4) BBL-8420 20,000 lbs. 27¾" 122" 84" A $2,835.78

5) BBL-6625H 25,000 lbs. 27¾" 104" 66" A $2,556.11
6) BBL-7225H 25,000 lbs. 27¾" 110" 72" A $2,599.29
7) BBL-7825H 25,000 lbs. 27¾" 116" 78" A $2,679.49
8) BBL-8425H 25,000 lbs. 27¾" 122" 84" A $2,959.16

9) BBL-6630HX 30,000 lbs. 27¾" 104" 66" A $2,609.57
10) BBL-7230HX 30,000 lbs. 27¾" 110" 72" A $2,698.00
11) BBL-7830HX 30,000 lbs. 27¾" 116" 78" A $2,755.58
12) BBL-8430HX 30,000 lbs. 27¾" 122" 84" A $3,035.25

Manual Edge of Dock - BBL Series (continued)

Model No. Capacity Span Overall Width Deck Width Note Price
13) BBL-6635HXX 35,000 lbs. 27¾" 104" 66"   $2,990.01
14) BBL-7235HXX 35,000 lbs. 27¾" 110" 72"   $3,144.24
15) BBL-7835HXX 35,000 lbs. 27¾" 116" 78"   $3,493.82
16) BBL-8435HXX 35,000 LBS 27¾" 122" 84"   $3,676.84
Notes:
A: Requires 28 lbs. to 34 lbs. of push pull force to engage.
