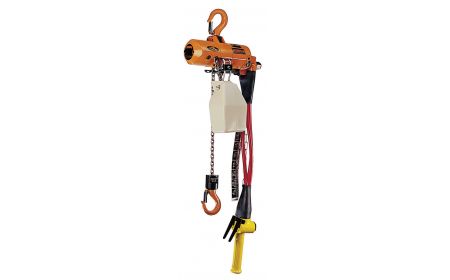

Air Chain Hoist

Air Chain Hoist - BACH series

Bear Claw® BACH Series

The compact Air Chain Hoist has a sturdy design. It's lightweight enough to be transported between and installed in different workstations and sturdy enough to be used in production lines. The two lever pendant control enables variable flow for precise load spotting.
Call for custom quote for your application

See chart below and click a model number

Product Details

  • Construction: Air Chain Hoist is designed as a lightweight, rugged and compact unit for industrial applications.
  • Color: Orange.
  • Weight: Net weight 19 lbs. for this type of air driven hoist.
  • Operation: 90 PSI of air pressure is required to operate the air chain hoist. Designed with variable flow, two lever pendant control for precise payload location and spotting. Can be used as a workstation air chain hoist or a production line air chain hoist.
  • Standard: The standard lift is 10' assuming the required 90 psi air flow is utilized. Air pressure by others.
  • Options: A chain container is available as an Air Chain Hoist option.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
  • Note: Testing, adjustments, training and scheduled maintenance procedures by others.

Documents



Air Chain Hoist - BACH Series
Model No. Capacity (LBS) Lifting F.P.M. Lift (Feet) Price
1) BACH-25 250 42 10 $Call
2) BACH-50 500 29 10 $Call
3) BACH-60 600 16 10 $Call
4) BACH-100 1,000 11 10 $Call
OPTION
Model No. Description Capacity (LBS) Width Length Price
5) BACH-CC-C Chain Container       $Call
