Cable Hoist

Cable Hoist - BMINI series

Bear Claw® BMINI Series

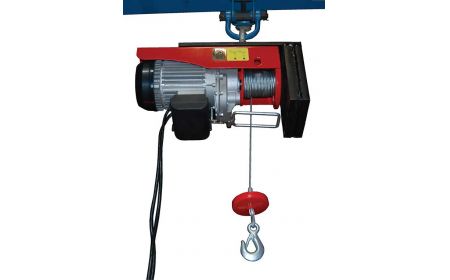

This electric Cable Hoist is designed for portable or remote applications and can be used for single or double-line lifting applications. This unit has a cable length of 36' when used as a single line or 18' when used as a double line. The series features up to a 2000-lb. capacity when used with a double line.
Starting at: $333.14

See chart below and click a model number

Product Details

  • Powered: Hand pendant control cord is 5' long for easy reach.
  • Power: Includes electric motor and handle held push button control operation for ease of use.
  • Installation: The mounting bracket for the Cable Hoist will attach to either 1-5/8" round pipe or 1-5/8" square tubing. When attaching a hoists to trolley an optional swivel hook plate must be ordered (trolley not included).
  • Weight: The BMINI -2 weighs 26 lbs., the BMINI-4 weighs 38 lbs., the BMINI-7 weights 47 lbs. & the BMNI-10 weighs 83 lbs.
  • Operation: Cable Hoist operates on 115V AC power.
  • Capacity: The BMINI-2 has a single-line capacity of 200 lbs. & double-line capacity of 400 lbs. The BMINI-7 has a 400 lb. single-line capacity and a 800 lb. double-line capacity, the BMINI has a 750 lbs. single line & 1500 lbs. double line capacity & the BMNI-10 has a 1000 lb. capacity with a 2000 lb. double line capacity.
  • Options: When using the Cable Hoist with a trolley (trolley not included), an optional swivel hook plate must be ordered. The optional swivel hook plate that needs to be ordered when attaching to a standard trolley is part no: BMINI-SH.
  • Note: Testing, adjustments, training and scheduled maintenance procedures by others.

Documents



Bear Claw® Cable Hoist - BMINI Series
Model No. Cable Length Foot per Minute Single-Line Capacity (LBS) Double-Line Capacity (LBS) Voltage Operation Voltage Price
1) BMINI-2 36' single or 18' double 30' 200 400 Push Button 110V   $333.14
2) BMINI-4 36' single or 18' double 30' 400 800 Push Button 110V   $417.88
3) BMINI-7 36' single or 18' double 30' 750 1500 Push Button 110V   $626.99
4) BMINI-10 36' single or 18' double 30' 1000 2000 Push Button 110V   $1,003.55
OPTION
Model No. Description Price
5) BMINI-SH-2 Swivel Hook Plate for BMINI-2 for 200 lb. Cable Hoist $279.20
6) BMINI-SH-4 Swivel Hook Plate for BMINI-4 for 400 lb. Cable Hoist $205.91
7) BMINI-SH-7 Swivel Hook Plate for BMINI-7 for 7500 lb. Cable Hoist $267.02
8) BMINI-SH-10 Swivel Hook Plate for BMINI-10 for 1000 lb. Cable Hoist $461.61
