Overhead Coil Hooks

Overhead Coil Hooks - BCH series

Bear Claw® BCH Series

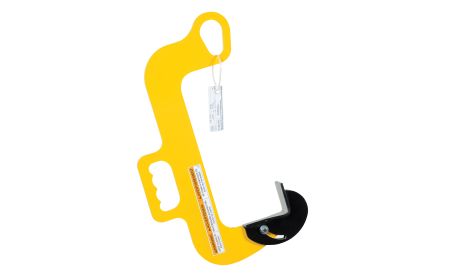

The Overhead Coil Hooks enable an overhead lifting device to raise heavy coils. These units position coils from the horizontal to the vertical position.
Starting at: $567.12

See chart below and click a model number

Product Details

  • Construction: Features steel construction for a long life and heavy duty use.
  • Color: Units are powder coated Beacon yellow.
  • Weight: Overhead Coil Hooks weigh 12, 24, or 29 lbs.
  • Operation: Units accept coils with a max width of 6", 8", or 12", a minimum coil radial of 13" or 16", and a minimum inside diameter of 9", 10", or 13".
  • Capacity: Overhead Coil Hooks feature capacities of 1,000 or 2,000 lbs.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
  • Note: The maximum coil widths are 6", 8", or 12". The minimum coil radials are 13" or 16". The minimum inside diameters are 9", 10", or 13".

Documents



Bear Claw® Overhead Coil Hooks - BCH Series
Model No. Lifting Capacity (LBS) Max. Coil Width Minimum Coil Radial Minimum Inside Diameter Price
1) BCH-10-6 1,000 6" 13" 9" $567.12
2) BCH-10-12 1,000 12" 13" 13" $601.55
3) BCH-20-8 2,000 8" 16" 10" $613.05
