Horizontal Plate Clamp

Horizontal Plate Clamp - BHPC series

Bear Claw® BHPC Series

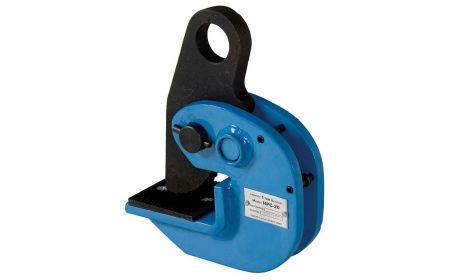

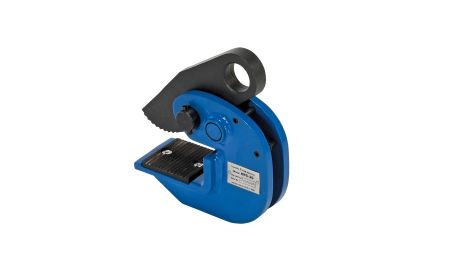

Bear Claw® Horizontal Plate Clamp firmly grasps plate material so that it can be lifted in the horizontal position. These units are manufactured to ASME B30.20 standards. This series is designed to lift only one plate at a time and can not be used to lift loads less than 20% of the working load limit.
Starting at: $185.56

See chart below and click a model number

Product Details

  • Construction: This series features heavy duty steel construction for a long life.
  • Size: These models feature bail openings of 1.2".
  • Color: This Horizontal Plate Clamp series features a Beacon blue powder coat finish.
  • Weight: Models weigh 8, 18 and 20 lbs.
  • Usage: Plate must be clean and free of oil. Lift one plate at a time.
  • Capacity: This Horizontal Plate Clamp series can accommodate working load limits ranging from 2,000 to 8,000 lbs. and plates from 0" to 1.375" thick.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
  • Note: Ships with the sku number as the identifer.

Documents



Bear Claw® Horizontal Plate Clamp - BHPC Series
Model No. Minimum Plate Thickness Max. Plate Thickness Minimum Plate Weight (LBS) Working Load Limit (LBS) Bail Opening Price
1) BHPC-20 0" 0.8125" 200 2,000 1.2" $185.56
2) BHPC-40 0" 1.25" 400 4,000 1.2" $217.46
3) BHPC-80 0" 1.375" 800 8,000 1.2" $284.74
