Pipe Lifting Clamps

Pipe Lifting Clamps - BPG series

Bear Claw® BPG Series

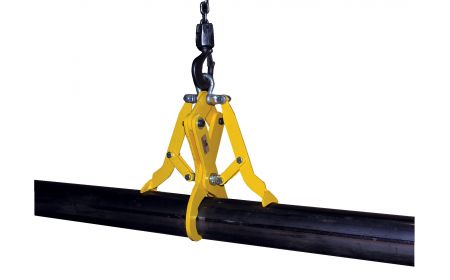

Bear Claw® Pipe Lifting Clamps firmly grasp pipes for lifting via an overhead lifting device. This equipment features auto operation and is user friendly. This series is available in 14 models; 7 are designed for steel pipes and 7 are designed for cast iron pipes. The various models accommodate pipes with outer diameters ranging from 3.5" to 11.1".
Starting at: $436.14

See chart below and click a model number

Product Details

  • Construction: This series features rugged steel construction.
  • Color: These Pipe Lifting Clamps are powder coated Beacon yellow.
  • Weight: This product comes in various weights ranging from 19 to 72 lbs.
  • Usage: Loads should be guided while lifting.
  • Capacity: Pipe Lifting Clamps accommodate various working load limits ranging from 450 to 2,000 lbs.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
  • Note: Ships with the sku number as the identifer.

Documents



Bear Claw® Pipe Lifting Clamps - BPG Series
Model No. Pipe Style Working Load Limit (LBS) Pipe O. D. Price
1) BPG-C-045 Cast Iron 450 3.50" to 4.00" $436.23
2) BPG-C-060 Cast Iron 600 4.50" to 4.80" $466.67
3) BPG-C-100 Cast Iron 1,000 5.5" to 7.00" $569.75
4) BPG-C-140 Cast Iron 1,400 8.63" to 9.05" $626.91
5) BPG-C-200 Cast Iron 2,000 10.75" to 11.10" $1,028.98

6) BPG-S-045 Steel 450 3.50" to 4.00" $436.14
7) BPG-S-060 Steel 600 4.50" to 4.80" $468.03
8) BPG-S-100 Steel 1,000 5.5" to 7.00" $569.83
9) BPG-S-140 Steel 1,400 8.63" to 9.05" $626.92
10) BPG-S-200 Steel 2,000 10.75" to 11.10" $1,028.91




TM
