Plate Clamp

Plate Clamp - BNMPC series

Bear Claw® BNMPC Series

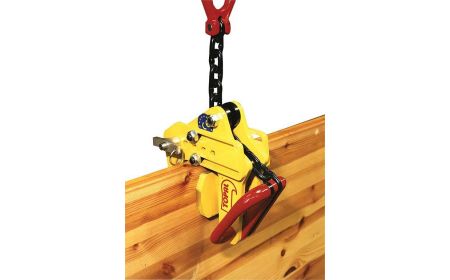

Bear Claw® Plate Clamp is used to lift and turn plates with smooth or polished surfaces. This series will not mar plates made out of stainless steel, aluminum, wood, concrete, marble, pre-lacquered plates, plastic, glass, or other fragile materials. This unit is desinged to meet the ANSI B30.20-24 standards.
Starting at: $3,852.69

See chart below and click a model number

Product Details

  • Size: Units are all 5" wide overall, 6", 7", or 8" long overall, and 8" or 10" high overall. Units require a minimum plate thickness of 0", 13/16", or 1-9/16" and accept maximum plate thicknesses up to 5-1/2".
  • Color: Plate Clamp units are Beacon yellow and Beacon red.
  • Weight: Units weigh between 10 and 25 lbs.
  • Usage: Lift only one plate at a time.
  • Capacity: This Plate Clamp series has a capacity of either 1,100 lbs. or 3,300 lbs.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
  • Note: Ships with the sku number as the identifer.

Documents



Bear Claw® Plate Clamp - BNMPC Series
Model No. Overall Size (W x L x H) Minimum Plate Thickness Max. Plate Thickness Capacity (LBS.) Price
1) BNMPC-11 5"x6"x8" 0" 13/16" 1,100 $Call
2) BNMPC-33 5"x7"x10" 0" 1⅛" 3,300 $4,191.08
3) BNMPC-11-3 5"x7"x10" 0" 3-5/16" 1,100 $3,852.69
4) BNMPC-11-4 5"x6"x10" 13/16" 4¼" 1,100 $Call
5) BNMPC-11-5 5"x8"x8" 1-9/16" 5½" 1,100 $Call
