Steel Beam Clamps

Steel Beam Clamps - BLPC series

Bear Claw® BLPC Series

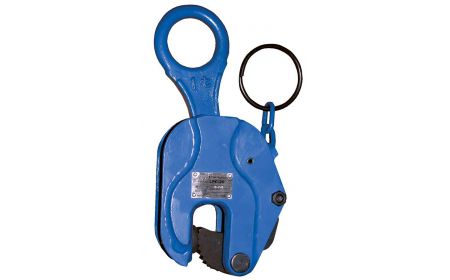

Bear Claw® Steel Beam Clamps are designed to securely grasp sheet material until its release ring is pulled. This series features a 2 to 1 safety factor and is designed to comply with ASME B30.20 specifications.
Starting at: $292.52

See chart below and click a model number

Product Details

  • Construction: The head and gear of this unit is forged steel. The serrated style gripper features hardened tool steel construction.
  • Size: Units feature bail openings of either 1.9" or 2.2" and throat depths of 2.30", 2.95", or 3.34".
  • Color: Models are powder coated Beacon blue.
  • Weight: Steel Beam Clamps weigh 12, 25 or 32 lbs.
  • Usage: Plate must be clean and free of oil in order to lift. Lift one plate at a time. Do not use with loads less than 20% rated capacity.
  • Capacities: Units accept plates ranging in thickness from 0" up to 1.5625".
  • Capacity: Steel Beam Clamps are not to be used to lift loads at less than 20% of the rated capacity. Units feature working load limits of 2,000, 4,000, or 6,000 lbs. and minimum capacities of 400, 800, or 1,200 lbs.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
  • Note: Ships with the sku number as the identifer.

Documents



Bear Claw® Steel Beam Clamps - BLPC Series
Model No. Minimum Plate Thickness Max. Plate Thickness Minimum Plate Weight (LBS) Working Load Limit (LBS) Throat Depth Bail Opening Price
1) BLPC-20 0" 0.80" 400 2,000 2.30" 1.9" $292.52
2) BLPC-40 0" 1.1875" 800 4,000 2.95" 2.2" $336.90
3) BLPC-60 0" 1.5625" 1,200 6,000 3.34" 1.9" $447.60
