Vertical Plate Clamp

Vertical Plate Clamp - BEPC series

Bear Claw® BEPC Series

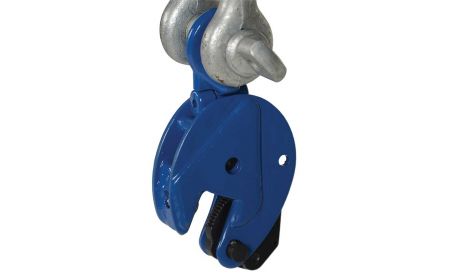

The Bear Claw® Vertical Plate Clamp is designed to firmly grip plate material for lifting. These vertical models feature automatic serrated hardened steel cams and pads. These units are made to accommodate a minimum plate thickness of 0" and a maximum plate thickness of 0.60", 0.75", 1", or 1.1".
Starting at: $163.92

See chart below and click a model number

Product Details

  • Size: These industrial models have bail openings ranging from 1.1" to 2.3" and throat depths of 1.6", 2.9", or 3".
  • Color: This series features a Beacon blue powder coat finish.
  • Weight: Vertical Plate Clamp models come in various weights ranging from 8 to 38 lbs.
  • Usage: Units may only lift one plate at a time. Plate should be free and clean of oil or silicone.
  • Capacities: Designed to meet ASME B30.20. Safety warning: Operator shall not exceed the work load limit capacity.
  • Capacity: Vertical Plate Clamp units can lift a minimum of 20% of the working load limit and have maximum capacities of 1,000, 2,000, 4,000, or 6,600 lbs.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
  • Note: Ships with the sku number as the identifer.

Documents



Bear Claw® Vertical Plate Clamp - BEPC Series
Model No. Minimum Plate Thickness Max. Plate Thickness Minimum Plate Weight (LBS) Working Load Limit (LBS) Throat Depth Bail Opening Price
1) BEPC-10 0" 0.60" 200 1,000 1.6" 1.1" $163.92
2) BEPC-20 0" 0.75" 400 2,000 2.9" 2.3" $265.67
3) BEPC-40 0" 1.00" 800 4,000 2.9" 2.3" $366.23
4) BEPC-80 0" 1.10" 1,320 6,600 3" 2.3" $549.47
