Vertical Plate Clamp with Chain

Vertical Plate Clamp with Chain - BCPC series

Bear Claw® BCPC Series

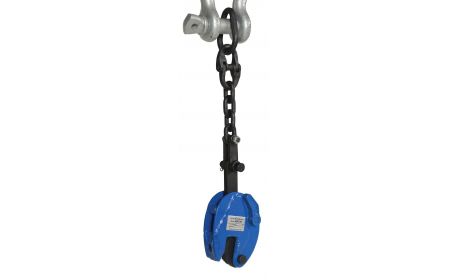

The Bear Claw® Vertical Plate Clamp with Chain is designed to securely grip plate material for lifting in the vertical position. The lifting eye on this unit includes a chain to expand its uses. This series meets ASME B30.20 standards.
Starting at: $221.20

See chart below and click a model number

Product Details

  • Construction: This unit is constructed of heavy-duty steel.
  • Size: Models have throat depths of either 1.25" or 3" and bail openings of 2.25", 3", 3.75", or 5.25".
  • Color: The Vertical Plate Clamp with Chain is powder-coated Beacon blue.
  • Weight: Models come in various weights ranging from 9 to 35 lbs.
  • Usage: Testing, adjustments, training and scheduled maintenance procedures by others. Units may only lift one plate at a time. Plate should be free and clean of oil or silicone.
  • Operation: Units are not designed to lift less that 20% of rated capacity. Only lift one plate at a time. Plate should be clean and free of oil.
  • Capacity: This Vertical Plate Clamp with Chain series accommodates working load limits of 1,000, 2,000, 4,000, or 6,600 lbs. Units have maximum plate thicknesses of .6", .8", 1", or 1.1875". Units are designed to lift a minimum of 200, 400, 800, or 1,320 lbs.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
  • Note: Ships with the sku number as the identifer.

Documents



Bear Claw® Vertical Plate Clamp with Chain - BCPC Series
Model No. Minimum Plate Thickness Max. Plate Thickness Minimum Plate Weight (LBS) Working Load Limit (LBS) Throat Depth Bail Opening Price
1) BCPC-10 0" 0.6" 200 1,000 1.25" 2.25" $221.20
2) BCPC-20 0" 0.8" 400 2,000 3" 3.00" $297.56
3) BCPC-40 0" 1" 800 4,000 3" 3.75" $389.07
