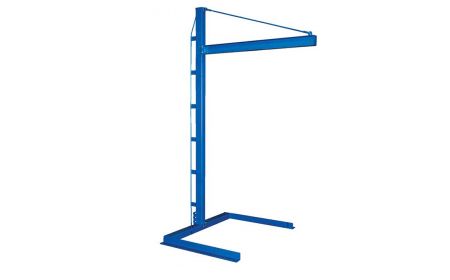

Overhead Jib Crane
Bear Claw® BCJIB Series
The Overhead Jib Crane has a unique fixed height design that allows for outriggers to be mounted underneath a workbench. This floor mounted unit is designed for user-friendly operation.
Starting at:
$1,345.59
Product Details
- Construction: This series is constructed of steel.
- Size: Models are available with an under I-beam to ground distance of 84" or 78-1/2" with an I-beam usable length of 54".
- Overall Width: All models are 54" wide.
- Overall Length: Overhead Jib Crane units are either 65.25" long or 63.125" long and either 103.6875 or 106.6875" high.
- Installation: Note: All cranes are shipped disassembled. All products should be inspected frequently to ensure safe operation. Final testing and inspecting is left to the end user after final assembly has been completed. For further details see ASME B30.17.
- Color: Models are powder-coated blue.
- Capacity: Supports up to 2,000 lbs.
- Options: Hoist and trolley are not included with the Overhead Jib Crane.
- Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
- Note: Testing, adjustments, training and scheduled maintenance procedures by others.
Bear Claw® Overhead Jib Crane - BCJIB Series | |||||||
Model No. | Under I-Beam to Ground | I-Beam Useable Length | Straddle Width (ID) | I-Beam Flange (W x H) | Capacity (LBS) | Overall Height | Price |
1) BCJIB-3 | 84" | 54" | 48" | 2.66"x4" | 300 | 106¾" | $1,345.59 |
2) BCJIB-6 | 84" | 54" | 48" | 2.66"x4" | 600 | 106¾" | $1,388.93 |
3) BCJIB-10 | 78½" | 54" | 48" | 3"x6" | 1,000 | 103¾" | $1,896.44 |
4) BCJIB-20 | 78½" | 54" | 48" | 3"x6" | 2,000 | 103¾" | $1,966.38 |
