Workstation Jib Crane
Bear Claw® BJIB Series

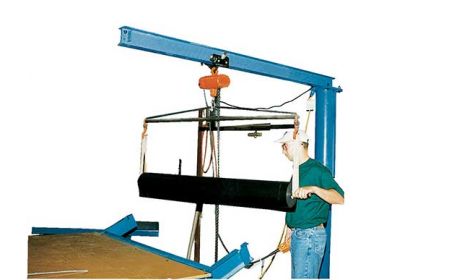

The Workstation Jib Crane is designed to assist workers in maneuvering and lifting awkward materials, as well as achieving maximum headroom in workplaces having low ceilings. The unit is available in floor-mounted, wall-mounted (for low ceilings), and tie rod jibs (for high ceilings). The -FM series rotates a full 360 degrees and the -LC and -HC units rotate 180 degrees. The wall-mounted unit features an I-beam length of 92" with a usable length of 80".
Starting at:
$758.09
Product Details
- Construction: The series features all-steel construction.
- Size: Tie rod jibs have an 86-1/4" overall length, an 82-1/4" or 76-3/4" cable support length and a 45-1/4" overall height. Wall jibs have a 57" height from I-beam to bottom frame and a 61" overall height. Floor mounted jibs have heights from 103" to 111".
- Installation: Note: All cranes are shipped disassembled. All products should be inspected frequently to ensure safe operation. Final testing and inspecting is left to the end user after final assembly has been completed. For further details see ASME B30.17.
- Weight: The Workstation Jib Crane is 144 lbs. to 742 lbs.
- Capacity: Models feature capacities ranging from 300 to 4,000 lbs.
- Options: Hoist and trolley are not included with the Workstation Jib Crane.
- Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
- Note: Testing, adjustments, training and scheduled maintenance procedures by others.
Bear Claw® - Tie Rod Workstation Jib Crane For High Ceilings - BJIB Series | |||||
Model No. | Overall Length | I-Beam (Flange x Height) | Overall Height | Capacity (LBS) | Price |
1) BJIB-HC-3 | 89" | 2.66"x4" | 43" | 300 | $758.09 |
2) BJIB-HC-6 | 89" | 2.66"x4" | 43" | 600 | $868.71 |
3) BJIB-HC-10 | 89" | 2.66"x4" | 43" | 1,000 | $980.62 |
4) BJIB-HC-20 | 89" | 2.66"x4" | 43" | 2,000 | $1,023.77 |
Bear Claw® - Tie Rod Workstation Jib Crane For High Ceilings - BJIB-LC Series | |||||
Model No. | Under I-Beam To Bottom Flange | I-Beam (Flange x Height) | Overall Height | Capacity (LBS) | Price |
5) BJIB-LC-3 | 57" | 2.66"x4" | 57" | 300 | $1,193.09 |
6) BJIB-LC-6 | 57" | 3"x6" | 57" | 600 | $1,293.47 |
7) BJIB-LC-10 | 57" | 3"x6" | 57" | 1,000 | $1,275.63 |
8) BJIB-LC-20 | 57" | 6"x8" | 57" | 2,000 | $1,327.82 |
Bear Claw® - Workstation Jib Crane - BJIB-FM Series | |||||
Model No. | Under I-Beam Floor | I-Beam (Flange x Height) | Overall Height | Capacity (LBS) | Price |
9) BJIB-FM-3 | 99¼" | 2.66"x4" | 103¼" | 300 | $1,527.48 |
10) BJIB-FM-6 | 99¼" | 3"x6" | 105¼" | 600 | $1,799.75 |
11) BJIB-FM-10 | 99¼" | 3"x6" | 105¼" | 1,000 | $2,033.80 |
12) BJIB-FM-20 | 99¼" | 6"x8" | 107¼" | 2,000 | $2,200.45 |
13) BJIB-FM-40 | 99¼" | 6"x12" | 111¼" | 4,000 | $5,472.08 |
