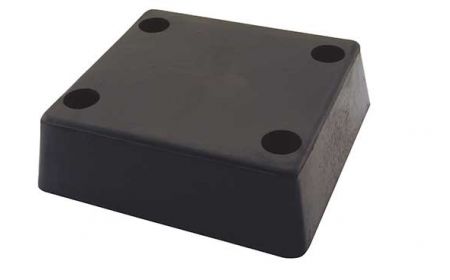

Truck Dock Bumper

Name: Truck Dock Bumper
Brand: Beacon
Price: 44.49 USD
Availability: InStock

Truck Dock Bumper - Molded Dock Bumper - BDB series

Beacon® BDB Series

Truck Dock Bumper - Molded Dock Bumper are designed to protect docks from damage caused by truck impacts. Rubber bumpers will not warp, rust, rot or harden. These models have high impact resistance.

Starting at: $44.49

See chart below and click a model number

Product Details

Construction: These are constructed of rubber and reinforced with prime rubber containing nylon and polyester. Plastic-face bumpers, model BB1213-4PF, feature a heavy duty plastic face. Steel-faced bumpers (BB-516-SF and BB-818-SF) have a steel face.
Projection: Models feature a projection ranging from 2" up to 6".
Size: Models come in sizes ranging from 5" wide to 16" long up to 22" wide x 22" long in order to custom-fit loading docks.
Installation: Installation hardware for the Truck Dock Bumper is sold separately. Anchors required are 6" long.
Color: Models are Beacon Black. Model BB-1213-4PF features a Beacon Yellow plastic face.
Weight: Models range in weight from 7 lbs. up to 60 lbs.
Standard: Units come standard with predrilled countersunk mounting holes for 3/4" anchor bolts depending on model. Units are manufactured ready for installation.
Options: For added safety, an aluminum OSHA standards sign is available for the Truck Dock Bumper.
Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
Note: Contact Beacon for special sizing information for your specific application.

Documents

Dock Bumpers

Options

Truck Dock Bumper - BDB Series
Model No.	Projection		Size (W x L)	Price
1) BDB-BM-2818	2"		18"x8"	$69.96
2) BDB-BM-318	3"		18"x10"	$149.25
3) BDB-BM-330	3"		30"x10"	$228.54
4) BDB-BB	3"		24"x12"	$163.24
5) BDB-BT	3"		22"x22"	$198.22
6) BDB-BM-18	4"		18"x10"	$163.24
7) BDB-BM-30	4"		30"x10"	$258.85
8) BDB-BDB-13	4"		13"x10"	$92.64
9) BDB-BBB	4"		24"x12"	$209.88
10) BDB-BR	4"		13"x12"	$104.38
11) BDB-BL	4"		18"x18"	$184.23
12) BDB-BAD-418	4"		18"x18"	$310.16
13) BDB-BBB61224	6"		24"x12"	$300.83
14) BB-1213-4	4"		12"x13"	$93.42
Plastic Face Truck Dock Bumper - BB Series
Model No.	Projection		Size (W x L)	Price
15) BB-1213-4PF	4"		12"x13"	$145.40
Rectangular Shaped Truck Dock Bumper - BB Series
Model No.	Projection		Size (W x L)	Price
16) BB-516	2"		5"x16"	$44.49
17) BB-818	2"		8"x18"	$59.29
18) BB-1224-3	3"		12"x24"	$85.92
19) BB-1224-6	6"		12"x24"	$192.70
Truck Dock Bumper With Molded In Steel Reinforcement Rings - BDBE Series
Model No.	Projection	Size (W x L)	Price Per	Price
20) BDBE-10-1	3"	4½"x10"	1	$44.49
21) BDBE-10-4	3"	4½"x10"	4	$151.29
22) BDBE-20-1	3"	4½"x20"	1	$71.19
23) BDBE-30-1	3"	4½"x30"	1	$97.85
24) BDBE-30-2	3"	4½"x30"	2	$177.86
Steel Faced Rectangular Shaped Truck Dock Bumper - BB-SF Series
Model No.	Projection		Size (W x L)	Price
25) BB-516-SF	2"		5"x16"	$103.66
26) BB-818-SF	2"		8"x18"	$130.40
L-Shaped Truck Dock Bumper - BL Series
Model No.	Projection		Size (W x L)	Price
27) BL-1818-4	4"		18"x18"	$145.28
T-Shaped Truck Dock Bumper - BT Series
Model No.	Projection		Size (W x L)	Price
28) BT-22	3"		22"x22"	$119.48
OPTION
Model No.	Description			Price
29) BSJS-1012	Aluminum Trailer Jack OSHA safety sign			$25.20
