Wheel Loading Guide

Name: Wheel Loading Guide
Brand: Beacon
Price: 479.39 USD
Availability: InStock

Beacon® BSWAC Series

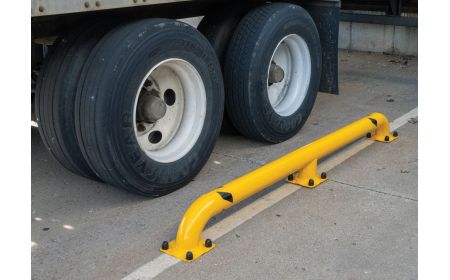

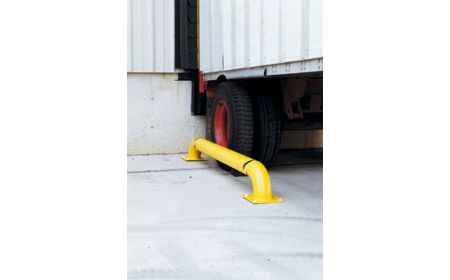

The Wheel Loading Guide - Dock Wheel Curbs are excellent for the proper alignment of trailers at loading docks. Each unit can be used outdoors or indoors. These models can be bolted to the surface or secured into concrete.

Starting at: $479.39

See chart below and click a model number

Product Details

Construction: Each unit features heavy-duty steel construction.
Size: The BSWAC-92 model is 8-15/16" high with a 4-1/2" diameter x 92" pipe length. The BSWAC-144 model is 8-15/16" high with a 4-1/2" diameter x 144" pipe length
Installation: This Wheel Loading Guide series may reduce your insurance; consult your insurance advisor.
Color: Yellow powder coat finish for high visibility.
Weight: The BSWAC-92 model weighs 62.25 lbs. The BSWAC-144 model weighs 86.44 lbs.
Standard: Units are sold priced each.
Options: The Wheel Loading Guide utilizes concrete anchor bolts (3/4" x 4"), sold seperately.
Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.

Documents

Prop. 65 WARNING

Wheel Loading Guide - BSWAC Series
Model No.	Pipe Height	Pipe Length	Overall Length with Base Plate	Pipe Diameter	Base Plate	Mounting Plates	Color	Safety Stripes	Price
1) BSWAC-92	8-15/16"	92"	95½"	4½"	8"x8"	3	Powder Coat Yellow	Black & Yellow Stripes on both Pipe Ends	$479.39
2) BSWAC-144	8-15/16"	144"	147½"	4½"	8"x8"	2	Powder Coat Yellow	Black & Yellow Stripes on both Pipe Ends	$546.83
