Loading Dock Lift Option: Electrical

Beacon® Scissor Dock Lift

Call for custom quote for your application

See chart below and click a model number
OPTION - Scissor Dock Lift
Model No. Description Width Length Height Heater Type Assembly Accomodates HP Units Price

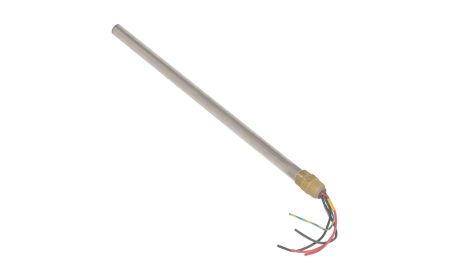

1) BIOH-460V Immersion Oil Heater, 460 Vac, 3 Ph 1.375" 1.375" 18.625" Immersion Oil Factory Installed 6.5 $1,044.24
Model No. Description Price
2) BWL-CB2 Control Station Box-Wall Mounted-24 Vac, NEMA 4 Control Box. 2-Push Button Control for up and down deck movement. $473.40
3) BWL-CBH Control Station Box-Handrail Mounted-24 Vac, NEMA 4 Control Box. 2-Push Button Control for up and down deck movement. $552.68
4) BWL-KL-HC2-S Additional dock lift optional 2 button key switch lockout located on the lift handrail. $1,890.44
5) BWL-KL Key Lockout Operation: Factory Installed. Avoids unathorized use of the lift. This option will lock out the controls and the power unit. $410.63

6) BWL-BQDC Pendant Hand Held Control -24 Vac, Quick Disconnect-for BWL Scissor Dock. Hand held control unit comes standard with 20' cord. $473.40
7) BWL-CO Pendant Hand Held Control-24 Vac, Unit to include additional special six-button hand control mounted on 20' long coil cord, wired to power unit in same location as other hand control. $2,228.65

OPTION - Scissor Dock Lift (continued)
Model No. Description Price
8) BWL-WC-S Control Station Box-Wall Mounted-includes six buttons: lift up, lift down, right lip up, right lip down, left lip up, left lip down. Installation by others. $2,226.00
9) BWL-HC-S Control Station Box-Handrail Mounted-includes six buttons: lift up, lift down, right lip up, right lip down, left lip up, left lip down. Includes quick-disconnect in deck with recess, must be disconnected when hand railing is being removed. $2,607.60

10) BWL-VCC Voltage Change on standard power unit from 460 Vac, 3 Ph, 60 Hz to 208-230 Vac, 3 Ph, 60 Hz. $117.21
11) BWL-3HP 3 HP Power Unit. 1 Phase 208/230 Vac 60 Hz. (1-1½ gallons per minute pump speed). Replaces standard 3 Phase power unit. $285.36
12) BWL-7HP 7 ½ HP Power Unit. 3 Phase 208-230/460 Vac 60Hz. (6 Gallon per minute pump speed). $1,153.67
13) BWL-10HP 10 HP Power Unit. 3 Phase 208-230/460 Vac 60Hz. (8 Gallon per minute pump speed). $1,424.92
