Additional Scissor Dock Leveler
(30 Models)

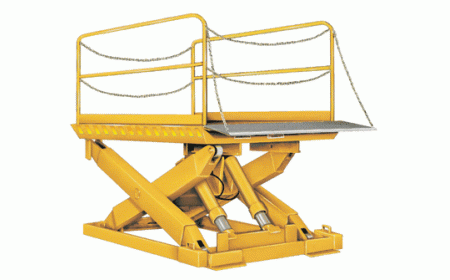

BSLD-300-810 Scissor Dock Leveler

Name: BSLD-300-810 Scissor Dock Leveler
Brand: Beacon
Availability: InStock

Beacon® BSLD Series

Model Number:

BSLD-300-810

Platform Size (W x L): 96" x 120"
Lowered Height: 20"
Raised Height: 80"
Cap LBS: 30,000
Max Axle Load Ends: 24,500
Max Axle Load Sides: 21,000
Base Frame: 48" x 108"
Motor HP: 7.5
Cylinders: 3

Shipping Weight (LBS): 10675
Category: Scissor Dock Leveler

Prop 65 WARNING

Product Info PDF: BSLD-Tech-Sheet.pdf
Owners Manual PDF: BSLD-Owners-Manual.pdf

each

Beacon® BSLD Series

Model Number:

BSLD-300-810

This product is made to order for each application and requires a survey sheet. Please call Beacon at 314-487-7600.

OPTIONS:
1) BSLD Option: Aluminum Treadplate, Bridge with Hinge Assy (3 items)
2) BSLD Option: Fully Automatic Mechanical Wheel Chock (1 items)
3) BSLD Option: Steel Treadplate, Bridge with Hinge Assy (3 items)
4) BSLD Option: Steel Treadplate Approach Ramp (1 items)
5) BSLD Option: Electrical (13 items)
6) BSLD Option: Handrails / Toeboards (4 items)
7) BSLD Option: Hydraulic (10 items)
8) BSLD Option: Hydraulic - Power Unit Assembly (4 items)
9) BSLD Option: Safety Skirting (2 items)

It is the customer's responsibility to verify BSLD-300-810 correctness of fit for applications. It is the customer's responsibility to verify that this Scissor Dock Leveler - BSLD Series complies with all safety laws, codes and regulations.
