SS - 6 Movement Solid Deck Leveler

Name: SS - 6 Movement Solid Deck Leveler
Brand: Beacon
Price: Call for custom quote for your application USD
Availability: InStock

6 Movement Solid Deck Leveler - SS Series

Beacon® SS Series

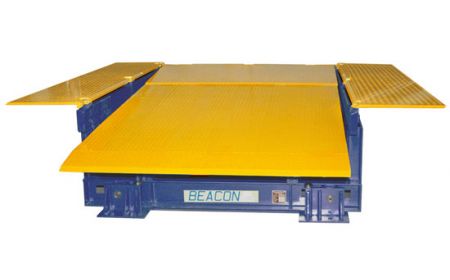

The exclusive SS - 6 Movement Solid Deck Leveler is designed with a solid deck. This equipment is automated by push button control. The six movement control raises and lowers the deck, moves it from left to right as well as forward and in reverse.

Call for custom quote for your application

See chart below and click a model number

Product Details

Construction: Sold in Bulk.
Size: 6', 6.5', or 7' wide loading dock equipment deck width. Loading dock ramps 8', 10' and 12' lengths available.
Service Range: 24" Vertical travel 12" up and 12" down. Slide Deck 20" horizontal movement. 12" Side movement; 6" to the left and 6" to the right.
Electrical: 3 Hp motor, 208/240/440 V 3 phase.
Operation: Two hydraulic cylinders control the vertical deck movement of the SS - 6 Movement Solid Deck Leveler, one hydraulic cylinder controls the slide deck lip, and two hydraulic cylinders control the side movement.
Capacities: Dynamic rated; 20,000 or 30,000 lbs. rollover capacity.
Standard: This SS - 6 Movement Solid Deck Leveler unit comes standard with the following: 20" continuous slide deck lip, full-range toe guards, and dock bumpers.
Limited Warranty: Includes a five year structural, three year hydraulics, and one year electrical. Extended warranties available.
Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
Note: Size and movements are nominal dimensions.

Documents

6 Movement Solid Deck Leveler - SS Series
Model No.	DL Width	DL Height	DL Length	Rollover Capacity	Price
1) SS68-20	6'	32"	8'	20,000 lb.	$Call
2) SS68-30	6'	32"	8'	30,000 lb.	$Call

3) SS610-20	6'	32"	10'	20,000 lb.	$Call
4) SS610-30	6'	32"	10'	30,000 lb.	$Call

5) SS612-20	6'	32"	12'	20,000 lb.	$Call
6) SS612-30	6'	32"	12'	30,000 lb.	$Call
6 Movement Solid Deck Leveler - SS Series (continued)
Model No.	DL Width	DL Height	DL Length	Rollover Capacity	Price
7) SS668-20	6’6"	32"	8'	20,000 lb.	$Call
8) SS668-30	6’6"	32"	8'	30,000 lb.	$Call

9) SS6610-20	6’6"	32"	10'	20,000 lb.	$Call
10) SS6610-30	6’6"	32"	10'	30,000 lb.	$Call

11) SS6612-20	6’6"	32"	12'	20,000 lb.	$Call
12) SS6612-30	6’6"	32"	12'	30,000 lb.	$Call
6 Movement Solid Deck Leveler - SS Series (continued)
Model No.	DL Width	DL Height	DL Length	Rollover Capacity	Price
13) SS78-20	7'	32"	8'	20,000 lb.	$Call
14) SS78-30	7'	32"	8'	30,000 lb.	$Call

15) SS710-20	7'	32"	10'	20,000 lb.	$Call
16) SS710-30	7'	32"	10'	30,000 lb.	$Call

17) SS712-20	7'	32"	12'	20,000 lb.	$Call
18) SS712-30	7'	32"	12'	30,000 lb.	$Call
