Top of Dock Levelers

Top of Dock Levelers - Top of Dock Ramp - BHTD Series

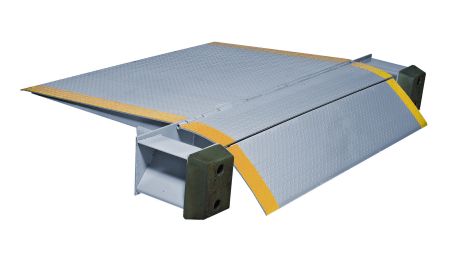

Beacon® BHTD-HA Series

Beacon® Top of Dock Levelers are best utilized at older buildings for loading docks below the industry standard 48" dock height. These Top of Dock Ramp units easily anchor on top of the dock and are typically an older building application.
Starting at: $13,445.84

See chart below and click a model number

Product Details

  • Size: The units have a 72" deck width and 5'3" span loading ramp.
  • Service Range: The unit's service range is 5" above and 5" below dock height.
  • Electrical: 115 V AC, 1 Phase, 60 Hz is standard. Other electrical options are available.
  • Powered: Top of Dock Levelers are hydraulic operated.
  • Capacities: This series has service capacities of 20,000, 25,000 or 30,000 lbs.
  • Standard: Models come standard with 15" hinged lip and dock bumpers.
  • Options: Top of Dock Levelers feature extenders to fill in the gap between the side of the top of dock structural frame and side building wall, sealing the overhead door when lowered. Longer lip is 17" to service Refrigerated trucks.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
  • Note: Due to angle of these models, pallet jacks are not recommended. Please look at our line of scissor dock lifts.

Documents
Top of Dock Levelers - Electric Hydraulic - BHTD-HA Series
Model No. Capacity Lip Projection Ramp Length Deck Face Deck Width Ramp Height Service Range Note Price
1) BHTD20LD72-3-HA 20,000 lb 15" 30" 94" 72" 3" (+5") (-5") A $13,445.84
2) BHTD20LD72-5-HA 20,000 lb 15" 48" 94" 72" 5" (+5") (-5")   $14,351.87
3) BHTD20LD72-7-HA 20,000 lb 15" 52" 94" 72" 7" (+5") (-5")   $15,230.34
4) BHTD20LD72-9-HA 20,000 lb 15" 64" 94" 72" 9" (+5") (-5")   $16,119.16
5) BHTD20LD72-11-HA 20,000 lb 15" 78" 94" 72" 11" (+5") (-5")   $17,007.96
6) BHTD20LD72-13-HA 20,000 lb 15" 90" 94" 72" 13" (+5") (-5")   $17,903.66

7) BHTD20LD78-3-HA 20,000 lb 15" 30" 100" 78" 3" (+5") (-5")   $13,886.80
8) BHTD20LD78-5-HA 20,000 lb 15" 48" 100" 78" 5" (+5") (-5")   $14,779.05
9) BHTD20LD78-7-HA 20,000 lb 15" 52" 100" 78" 7" (+5") (-5")   $15,812.55
10) BHTD20LD78-9-HA 20,000 lb 15" 64" 100" 78" 9" (+5") (-5")   $16,567.00
11) BHTD20LD78-11-HA 20,000 lb 15" 78" 100" 78" 11" (+5") (-5")   $17,452.37
12) BHTD20LD78-13-HA 20,000 lb 15" 90" 100" 78" 13" (+5") (-5")   $18,344.62

Top of Dock Levelers - Electric Hydraulic - BHTD-HA Series (continued)
Model No. Capacity Lip Projection Ramp Length Deck Face Deck Width Ramp Height Service Range Note Price
13) BHTD25LD72-3-HA 25,000 lb 15" 30" 94" 72" 3" (+5") (-5")   $14,134.84
14) BHTD25LD72-5-HA 25,000 lb 15" 48" 94" 72" 5" (+5") (-5")   $15,127.00
15) BHTD25LD72-7-HA 25,000 lb 15" 52" 94" 72" 7" (+5") (-5")   $15,127.00
16) BHTD25LD72-9-HA 25,000 lb 15" 64" 94" 72" 9" (+5") (-5")   $17,121.65
17) BHTD25LD72-11-HA 25,000 lb 15" 78" 94" 72" 11" (+5") (-5")   $18,113.81
18) BHTD25LD72-13-HA 25,000 lb 15" 90" 94" 72" 13" (+5") (-5")   $19,112.86

19) BHTD25LD78-3-HA 25,000 lb 15" 30" 100" 78" 3" (+5") (-5")   $14,630.92
20) BHTD25LD78-5-HA 25,000 lb 15" 48" 100" 78" 5" (+5") (-5")   $15,626.52
21) BHTD25LD78-7-HA 25,000 lb 15" 52" 100" 78" 7" (+5") (-5")   $16,622.12
22) BHTD25LD78-9-HA 25,000 lb 15" 64" 100" 78" 9" (+5") (-5")   $17,617.73
23) BHTD25LD78-11-HA 25,000 lb 15" 78" 100" 78" 11" (+5") (-5")   $18,616.78
24) BHTD25LD78-13-HA 25,000 lb 15" 90" 100" 78" 13" (+5") (-5")   $19,612.39

25) BHTD30LD72-3-HA 30,000 lb 15" 30" 94" 72" 3" (+5") (-5")   $14,903.07
26) BHTD30LD72-5-HA 30,000 lb 15" 48" 94" 72" 5" (+5") (-5")   $15,671.30
27) BHTD30LD72-7-HA 30,000 lb 15" 52" 94" 72" 7" (+5") (-5")   $17,366.25
28) BHTD30LD72-9-HA 30,000 lb 15" 64" 94" 72" 9" (+5") (-5")   $18,472.09
29) BHTD30LD72-11-HA 30,000 lb 15" 78" 94" 72" 11" (+5") (-5")   $19,581.38

Top of Dock Levelers - Electric Hydraulic - BHTD-HA Series (continued)
Model No. Capacity Lip Projection Ramp Length Deck Face Deck Width Ramp Height Service Range Note Price
30) BHTD30LD78-3-HA 30,000 lb 15" 30" 100" 78" 3" (+5") (-5")   $15,457.72
31) BHTD30LD78-5-HA 30,000 lb 15" 48" 100" 78" 5" (+5") (-5")   $15,457.72
32) BHTD30LD78-7-HA 30,000 lb 15" 52" 100" 78" 7" (+5") (-5")   $17,869.22
33) BHTD30LD78-9-HA 30,000 lb 15" 64" 100" 78" 9" (+5") (-5")   $18,699.46

34) BHTD20LD72-3R-HA 20,000 lb 17" 30" 94" 72" 3" (+5") (-5")   $13,587.08
35) BHTD20LD72-5R-HA 20,000 lb 17" 48" 94" 72" 5" (+5") (-5")   $14,479.34
36) BHTD20LD72-7R-HA 20,000 lb 17" 52" 94" 72" 7" (+5") (-5")   $15,368.14
37) BHTD20LD72-9R-HA 20,000 lb 17" 64" 94" 72" 9" (+5") (-5")   $16,260.40

38) BHTD20LD78-3R-HA 20,000 lb 17" 30" 100" 78" 3" (+5") (-5")   $14,028.04
39) BHTD20LD78-5R-HA 20,000 lb 17" 48" 100" 78" 5" (+5") (-5")   $14,923.74
40) BHTD20LD78-7R-HA 20,000 lb 17" 52" 100" 78" 7" (+5") (-5")   $15,809.11
41) BHTD20LD78-9R-HA 20,000 lb 17" 64" 100" 78" 9" (+5") (-5")   $16,704.80

Top of Dock Levelers - Electric Hydraulic - BHTD-HA Series (continued)
Model No. Capacity Lip Projection Ramp Length Deck Face Deck Width Ramp Height Service Range Note Price
42) BHTD25LD72-3R-HA 25,000 lb 17" 30" 94" 72" 3" (+5") (-5")   $14,303.64
43) BHTD25LD72-5R-HA 25,000 lb 17" 48" 94" 72" 5" (+5") (-5")   $15,302.69
44) BHTD25LD72-7R-HA 25,000 lb 17" 52" 94" 72" 7" (+5") (-5")   $16,536.00
45) BHTD25LD72-9R-HA 25,000 lb 17" 64" 94" 72" 9" (+5") (-5")   $17,293.90

46) BHTD25LD78-3R-HA 25,000 lb 17" 30" 100" 78" 3" (+5") (-5")   $14,799.72
47) BHTD25LD78-5R-HA 25,000 lb 17" 48" 100" 78" 5" (+5") (-5")   $15,802.22
48) BHTD25LD78-7R-HA 25,000 lb 17" 52" 100" 78" 7" (+5") (-5")   $16,801.26
49) BHTD25LD78-9R-HA 25,000 lb 17" 64" 100" 78" 9" (+5") (-5")   $17,796.87

50) BHTD30LD72-3R-HA 30,000 lb 17" 30" 94" 72" 3" (+5") (-5")   $15,113.22
51) BHTD30LD72-5R-HA 30,000 lb 17" 48" 94" 72" 5" (+5") (-5")   $16,222.50
52) BHTD30LD72-7R-HA 30,000 lb 17" 52" 94" 72" 7" (+5") (-5")   $17,572.94
53) BHTD30LD72-9R-HA 30,000 lb 17" 64" 94" 72" 9" (+5") (-5")   $18,678.79

Top of Dock Levelers - Electric Hydraulic - BHTD-HA Series (continued)
Model No. Capacity Lip Projection Ramp Length Deck Face Deck Width Ramp Height Service Range Note Price
54) BHTD30LD78-3R-HA 30,000 lb 17" 30" 100" 78" 3" (+5") (-5")   $15,664.42
55) BHTD30LD78-5R-HA 30,000 lb 17" 48" 100" 78" 5" (+5") (-5")   $16,773.71
56) BHTD30LD78-7R-HA 30,000 lb 17" 52" 100" 78" 7" (+5") (-5")   $17,889.89
57) BHTD30LD78-9R-HA 30,000 lb 17" 64" 100" 78" 9" (+5") (-5")   $19,002.62
Notes:
A: Includes Steel Bump Blocks with 4"x13"x12" molded rubber bumper
