Barrel Dumper

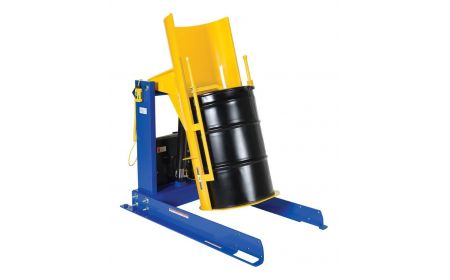

Barrel Dumper - Hydraulic Drum Tipper - BHDD series

Beacon® BHDD-S Series

Barrel Dumper - Hydraulic Drum Tipper is ideal for the dispensing of drum contents at various standard heights. This hydraulic equipment is controlled by the push of a button. Models dump various steel, plastic, and fiber drum sizes.
Starting at: $5,239.27

See chart below and click a model number

Product Details

  • Construction: Features steel construction and stainless steel finish.
  • Dump Heights: Units dump at various heights from 36" to 72".
  • Power: 1-1/2 Hp motor, single phase. (Three phase also available).
  • Installation: The unit is standard with a blue enamel chute and frame. Three options are available all with a 304 stainless steel chute; (1) blue enamel frame, (2) white powder coat frame FDA approved incidental contact (3) Steel-It Frame FDA incidental contact.
  • Weight: The Barrel Dumper weighs from 735 to 1,186 lbs.
  • Capacities: Models feature capacities of 750, 1,000 or 1,500 lbs.
  • Standard: Upper travel limit switch, emergency brass safety velocity fuse in cylinder and vertical adjustment drum restraints are standard.
  • Options: 30-gallon drum adaptor. Stainless steel chutes. 12 V DC. Adjustable height clamps, coated in Steel-It coating, must be ordered as option with the hydraulic Barrel Dumper.
  • Limited Warranty: Contact Beacon regarding additional hold-down bar heights
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
  • Note: All standard and special drum dumper chutes are stitch welded. Special continuous welds for liquid tight available at additional charge.
  • BHDD-48-7-S360° View

Documents
Barrel Dumper - BHDD-S Series
Model No. Dump Height Rotation Height Level Height Capacity (lbs.) Note Price
1) BHDD-36-7-S 36" 91¾" 60½" 750 A $5,239.27
2) BHDD-48-7-S 48" 112¼" 72½" 750 A $5,521.73
3) BHDD-60-7-S 60" 132¾" 84½" 750 A $5,795.16
4) BHDD-72-7-S 72" 153" 96" 750 A $6,316.71

5) BHDD-36-10-S 36" 91¾" 60½" 1,000 A $5,400.85
6) BHDD-48-10-S 48" 112¼" 72½" 1,000 A $5,661.53
7) BHDD-60-10-S 60" 132¾" 84½" 1,000 A $6,377.71
8) BHDD-72-10-S 72" 153" 96" 1000 A $6,434.95

9) BHDD-36-15-S 36" 91¾" 60½" 1,500 A $6,066.02
10) BHDD-48-15-S 48" 112¼" 72½" 1,500 A $6,377.62
11) BHDD-60-15-S 60" 132¾" 84½" 1,500 A $6,661.36
12) BHDD-72-15-S 72" 153" 96" 1,500 A $6,915.71
Notes:
A: Standard Power is 115V 1 Phase AC with Cord
