Drum Carrier

Drum Carrier - BHDC series

Beacon® BHDC-305 Series

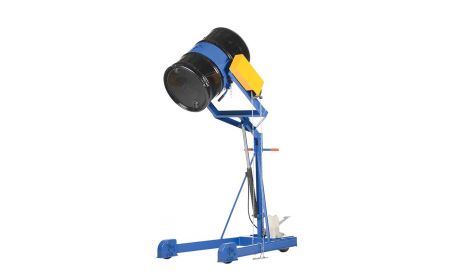

The Drum Carrier allows for easy drum handling of loaded 55-gallon steel drums by one person. This series rotates drums 360 degrees with either a pull chain or a hand crank. This unit is held securely in place with a durable chain locking system. It is lowered or raised by a hydraulic foot pump. This equipment is for use with steel drums only.
Starting at: $3,831.14

See chart below and click a model number

Product Details

  • Construction: This series features heavy-duty steel construction.
  • Lift Heights: Units have lift heights of 60", 72", 84", and 96".
  • Power: Optional AC, DC, or Air/Oil power units are available for the lifting operation. Optional DC or hand crank options are available for the rotation method.
  • Color: Model BHDC-450-60 is painted Beacon yellow; all other models are painted Beacon blue.
  • Weight: This Drum Carrier series weighs from 483 lbs. to 765 lbs. Optional power units add 36 lbs. to overall weight.
  • Operation: Models are operated by a hand crank, pull chain, or optional power units. Models ending in -AC or -DC come standard with AC or DC power units for lifting and pull chains for rotation.
  • Capacity: Models have a maximum capacity of 800 lbs.
  • Standard: All models include a boom attachment which also stores the outriggers.
  • Options: A 30-gallon drum adaptor is available for the Drum Carrier. Lift options include AC, DC, and Air/Oil power. Rotation options include a hand crank (instead of the standard pull chain) and 24V DC power. Contact Beacon for fiber and plastic drum options.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
  • Note: When using this equipment, the drum will need to be strapped in.

Documents
Drum Carrier - Rotator - Boom - BHDC-305 Series
Model No. Drum Type Rotation Method Lift Height Capacity (LBS) Note Price
1) BHDC-305-72 55 Gallon Steel Pull Chain 72" 800 A $4,834.68
2) BHDC-305-84 55 Gallon Steel Pull Chain 84" 800 A $3,831.14
3) BHDC-305-96 55 Gallon Steel Pull Chain 96" 800 A $3,993.89
4) BHDC-305-60 55 Gallon Steel Hand Crank 60" 800 A $4,646.59
Notes:
A: Drum Must be Full to Rotate at Rated Capacity; Series BHDC-305 is Standard with Adaptable Boom
Drum Carrier - Rotator - Boom with Power Option - BHDC-305 Series
Model No. Drum Type Rotation Method Lifting Method Lift Height Capacity (LBS) Note Price
5) BHDC-305-60-AC 55 Gallon Steel Hand Crank AC power 60" 800 A $5,082.89
6) BHDC-305-60-DC 55 Gallon Steel Hand Crank DC power 60" 800 A $5,082.89
7) BHDC-305-72-AC 55 Gallon Steel Pull Chain AC power 72" 800 A $5,225.19
8) BHDC-305-72-DC 55 Gallon Steel Pull Chain DC power 72" 800 A $5,225.19
9) BHDC-305-84-AC 55 Gallon Steel Pull Chain AC power 84" 800 A $5,225.25
10) BHDC-305-84-DC 55 Gallon Steel Pull Chain DC power 84" 800 A $5,225.25
11) BHDC-305-96-AC 55 Gallon Steel Pull Chain AC power 96" 800 A $5,388.00
12) BHDC-305-96-DC 55 Gallon Steel Pull Chain DC power 96" 800 A $5,388.00
Notes:
A: Drum Must be Full to Rotate at Rated Capacity; Series BHDC-305 is Standard with Adaptable Boom
OPTION - LIFT
Model No. Description Note Price
13) BHDC-DC 12V DC power unit A $1,160.01
14) BHDC-AC 115V AC power unit A $1,159.87
15) BHDC-AIR Air/Oil operated power unit A $817.72
Notes:
A: Drum Must be Full to Rotate at Rated Capacity; Series BHDC-305 is Standard with Adaptable Boom
OPTION - Rotation
Model No. Description Note Price
16) BHDC-R-DC 24V DC Power   $2,938.21
17) BHDC-R-HC Hand Crank (instead of pull chain)   $195.74
Notes:
A: Drum Must be Full to Rotate at Rated Capacity; Series BHDC-305 is Standard with Adaptable Boom
