Drum Lift and Dump

Drum Lift and Dump - BHLD series

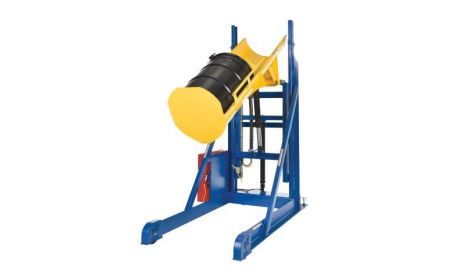

Beacon® BHLD Series

The Drum Lift and Dump is the ultimate work area solution for emptying heavy barrels. When you need to dump drums at various heights, this series will meet the challenge. It features lifting angles of 40 or 45 degrees and lifting capacities of up to 1,500 lbs. Both portable and stationary models are available to fit all applications.
Starting at: $13,381.41

See chart below and click a model number

Product Details

  • Operating Range: This BHLD series is similar to the BHDD Series; however, this unit includes a hydraulic lift cylinder that allows the user to dump at different heights. Dump heights range from 48" to 116", depending on the model selected.
  • Power: 120 Vac, 1 phase power
  • Operation: This unit features user-friendly (4) push button pendant system, allowing the operator to control independently both lifting height and dumping angle.
  • Standard: A hydraulic lift cylinder is standard on the Drum Lift and Dump.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
  • Note: All standard and special Drum Lift and Dump chutes are stitch welded. Special continuous welds for liquid tight available at additional charge.

Documents
Drum Lift and Dump - BHLD Series
Model No. Dump Height Min / Max Rotation Height Level Height Capacity Frame (W x L) Dump Angle Description Price
1) BHLD-94-10-P 48" / 94" 166" 87" 1,000 lbs. 44"x69" 40 Degrees Portable $13,943.57
2) BHLD-116-10-P 60" / 116" 195" 87" 1,000 lbs. 44"x77" 40 Degrees Portable $14,929.27
3) BHLD-94-15-P 48" / 94" 166" 87" 1,500 lbs. 44"x69" 40 Degrees Portable $14,610.04
4) BHLD-116-15-P 60" / 116" 195" 87" 1,500 lbs. 44"x77" 40 Degrees Portable $15,649.24

5) BHLD-94-10-S 48" / 94" 165" 86" 1,000 lbs. 44"x58" 45 Degrees Stationary $13,381.41
6) BHLD-116-10-S 60" / 116" 194" 86" 1,000 lbs. 44"x66" 45 Degrees Stationary $14,363.32
7) BHLD-94-15-S 48" / 94" 165" 86" 1,500 lbs. 44"x58" 45 Degrees Stationary $14,045.35
8) BHLD-116-15-S 60" / 116" 194" 86" 1,500 lbs. 44"x66" 45 Degrees Stationary $15,081.95
