Barrel Dolly

Barrel Dolly - BDCR series

Beacon® BDCR Series

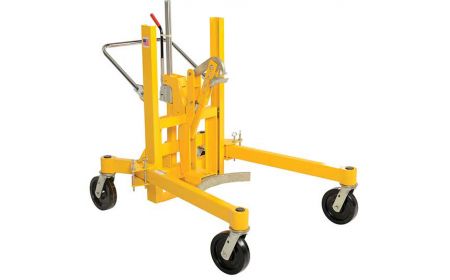

Barrel Dolly is uniquely designed to lift and move plastic, steel, and fiber drums with a top lip. For transport security, the steel jaws securely grips to lock the top lip of the drum. The straddle legs are designed to rotate for access for drums on pallets.
Starting at: $1,592.35

See chart below and click a model number

Product Details

  • Construction: These units feature all welded steel construction.
  • Service Range: Models have a jaw service range from 27" to 74".
  • Power: Optional DC-powered models are available.
  • Color: Barrel Dolly models are powder coated with a Beacon safety yellow finish.
  • Weight: Units weigh between 170 and 250 lbs. The optional scale adds 70 lbs. to the overall weight.
  • Operation: Models are available in either a manual mechanical ratchet or a foot pump hydraulic lift mechanism. The units roll on four 8" x 2" phenolic casters.
  • Capacity: Units feature a 1,500 lb. capacity.
  • Standard: This series rolls on four 8" x 2" glass-filled casters. The push handle is able to fold down to allow access to the ratchet and foot pump.
  • Options: An optional weight scale is available for this Barrel Dolly BDCR series. The scale allows users to weigh drums within an accuracy +/- 0.5 lbs. and includes an AC adaptor and 6 D batteries.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
  • Note: Testing, adjustments, training and scheduled maintenance procedures by others.

Documents


Options


Barrel Dolly - BDCR Series
Model No. Jaw Service Range Capacity (LBS) Operation Price
1) BDCR-880-M 31" to 46½" 880 Hand Ratchet $1,592.35
2) BDCR-880-H 31" to 48½" 1,500 Foot Pump $1,883.73
3) BDCR-880-H-HP 31" to 72" 880 Foot Pump $2,238.69

4) BDCR-880-H-DC 31" to 48½" 1,500 DC Powered $5,181.94
5) BDCR-880-H-HP-DC 27" to 74" 880 DC Powered $5,162.92
OPTION
Model No. Description Accuracy Capacity (LBS) Batteries Adaptor Price
6) BDCR-SCALE Optional Drum-Weighing Scale +/- 0.5 lbs. 1,500 (6) D Cell Batteries AC $2,611.26


Complementary Products: For drum-hoisting equipment, please see the Beacon Vertical Drum Lifter.
