Drum Palletizer

Drum Palletizer - BPSDT series

Beacon® BPSDT Series

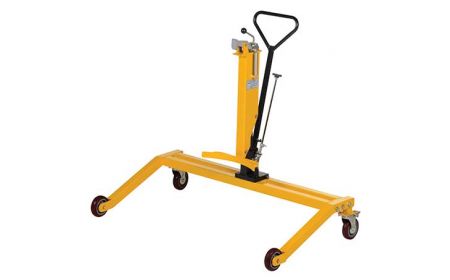

The Drum Palletizer is designed to allow one worker to easily lift and transport drums that are sitting on the center of pallets or the edge of containment skids. These units work with both 30 and 55-gallon drums made from fiber, plastic, or steel.
Starting at: $1,259.23

See chart below and click a model number

Product Details

  • Construction: This series features heavy-duty steel construction.
  • Size: Units are 41-5/16" wide x 32" deep x 47" high. The retracted leg inner width is 41-5/16"; the extended leg inner width is 40".
  • Service Range: This unit features a lowered height of 35-3/4" and a raised height of 46-3/8".
  • Power: Each Drum Palletizer unit is painted Beacon yellow.
  • Weight: 115 lbs.
  • Operation: This equipment is operated by engaging barrels with a rim clamp to grasp the top lip.
  • Capacity: 550 lbs.
  • Standard: This Drum Palletizer series features two rigid and 2 swivel polyurethane casters. Each swivel caster features a guard as well as brakes.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
  • Note: Testing, adjustments, training and scheduled maintenance procedures by others.

Documents



Drum Palletizer - BPSDT Series
Model No. Accommodates Overall Size (W x D x h) Lowered Height Raised Height Retracted Leg Inner Width Extended Leg Inner Width Capacity (LBS) Price
1) BPSDT 30 and 55 Gallon Steel, Plastic, and Fiber Drums 41-5/16"x32"x47" 35¾" 46⅜" 41-5/16" 40" 550 $1,259.23
