Hydraulic Drum Truck

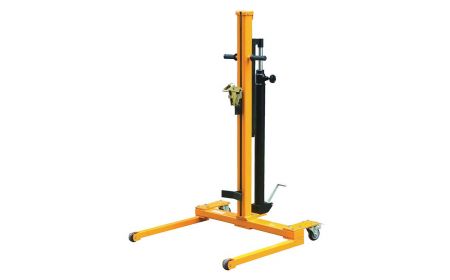

Hydraulic Drum Truck - BLPDT series

Beacon® BLPDT Series

The Hydraulic Drum Truck is ideal for single workers to work with raised drums as well as transporting and positioning drums. These units are designed for use with 55-gallon plastic, fiber, and steel drums.
Starting at: $1,284.61

See chart below and click a model number

Product Details

  • Construction: Models feature steel construction.
  • Size: This unit is 34" wide x 37" long x 60" high. Outriggers are 2-1/4". The front wheels have a minimum clearance of 2-1/2".
  • Service Range: Models have a service range of 32-7/8" to 64-9/16". The maximum rim clamp height is 60".
  • Installation: Hydraulic Drum Truck units can easily be assembled and disassembled for storage.
  • Color: This series is painted Beacon yellow.
  • Weight: 185 lbs.
  • Operation: This series features a spring-loaded clamp for gripping the drum's rim and is operated via a foot-operated hydraulic pump.
  • Capacity: 600 lbs.
  • Standard: This Hydraulic Drum Truck unit comes standard with two 2-1/2" x 1-1/2" rigid front wheels and two 3-1/8" x 1-1/4" swivel poly rear wheels.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
  • Note: Testing, adjustments, training and scheduled maintenance procedures by others.

Documents



Hydraulic Drum Truck - BLPDT Series
Model No. Accommodates Overall Size (W x D x H) Lowered Height Raised Height Max. Rim Clamp Height Outriggers Capacity (LBS) Price
1) BLPDT 55 Gallon Plastic, Fiber, and Steel Drums 34"x37"x60" 32⅞" 64-9/16" 60" 2¼" 600 $1,284.61
