Drum Storage Rack

Drum Storage Rack - BDRK series

Beacon® BDRK series

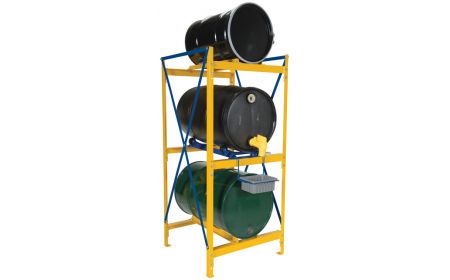

This Drum Storage Rack keeps warehouses and plants organized. These units accommodate 30 and 50 gallon sized drums.
Starting at: $676.55

See chart below and click a model number

Product Details

  • Construction: This Drum Storage Rack is constructed out of heavy duty steel for maximum support.
  • Size: This unit has an overall size that varies from 34-7/8" x 34-13/16" x 74-9/16" to 85-15/16" x 34-13/16" x 31-1/4".
  • Color: This unit is yellow with blue cross braces.
  • Usage: Drum Storage Rack is manufactured to store 3, 4, 6 or 9 drums.
  • Capacity: Engineered with capacities that range from 2400, 3200, 4800, 7200 lbs.
  • Standard: Designed with uprights to keep the drums from accidentally rolling off. Includes forklift entry from the front and the rear as well as (4) anchor pads to prevent the unit from tipping over.
  • Options: Revolving drum cradle and a drip pan with steel holder are both available as options.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
  • Note: Three (3) is the recommended number that can be stacked on top of each other.

Documents



Drum Storage Rack - BDRK series
Model No. Description Width Depth Length Capacity (lbs.) Price
1) BDRK-1-3 3-Drum Rack 34⅞" 34-13/16" 74-9/16" 2,400 $676.55
2) BDRK-2-2 4-Drum Rack 60-7/16" 34-13/16" 53-1/6" 3,200 $726.29
3) BDRK-3-2 6-Drum Rack 60-7/16" 34-13/16" 74-9/16" 4,800 $937.34
4) BDRK-2-3 6-Drum Rack 85-15/16" 34-13/16" 53-1/6" 4,800 $872.48
5) BDRK-3-3 9-Drum Rack 85-15/16" 34-13/16" 74-9/16" 7,200 $1,502.18

6) BDRK-SRS-2 2-Drum Rack 61½" 35½" 31¼" 1,600 $688.05
Drum Storage Rack - OPTION
Model No. Description Price
7) BDRK-PRDC-42-R Optional Revolving Drum Cradle $214.94
8) BDRK-PRDC-DPN Optional Drip Pan with Steel Holder $114.39
