Rack Drum Positioner

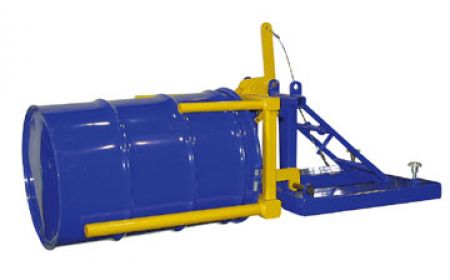

Rack Drum Positioner - Forklift Barrel Racker - BDRUM series

Beacon® BDRUM-P Series

Rack Drum Positioner - Forklift Barrel Racker invert drums to the horizontal position with the use of a fork truck. The positive latching system ensures the safe handling of drums. BDRUM-P-55 and BDRUM-P-30 positioners accept only steel drums.
Starting at: $1,766.74

See chart below and click a model number

Product Details

  • Construction: This series features heavy-duty welded steel construction.
  • Size: These models have fork pocket openings measuring 7-1/2" wide x 2-1/2" high, usable on 20-1/2" centers.
  • Overall Width: Models have an overall width of 32-1/2" and an overall height of 32-7/16".
  • Overall Length: Rack Drum Positioner units are 75" long.
  • Color: Units are powder coated Beacon blue and Beacon yellow.
  • Weight: 315 or 318 lbs.
  • Operation: These units rely on a fork truck to rotate and lift drums. Simply slide the positioner extension over the vertical drum and rotate the drum to a horizontal position. A welded spacer protects drum fixtures from damage during rotation.
  • Capacity: Rack Drum Positioner units feature an 800 lb. capacity.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
  • Note: In addition to rotating drums to the horizontal racking position, this series also enables removal of drums from the rack and rotating them to the stand-up vertical position.

Documents



Rack Drum Positioner - BDRUM-P Series
Model No. Acceptable Drum Type Capacity (LBS) Price
1) BDRUM-P-55 55 Gallon Steel Drums 800 $1,808.61
2) BDRUM-P-30 30 Gallon Steel Drums 800 $1,766.74
