Drum Funnel

Name: Drum Funnel
Brand: Beacon
Price: 419.62 USD
Availability: InStock

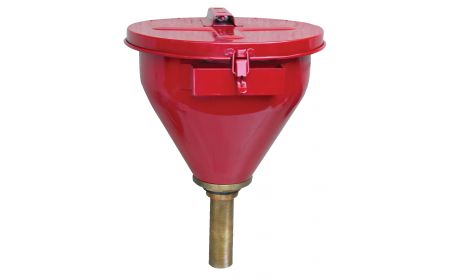

Drum Funnel - 55 gal Barrel Funnel - BDF series

Beacon® BDF Series

The Drum Funnel - 55 gal Barrel Funnell enables the rapid filling of 55-gallon drums with a 2" plug. This product features a hinged lid with fusible link. It includes an 8-3/4" brass flame arrestor for extra safety. The lid latch is lockable and automatically closes at 165 degrees. A gasket is included to ensure a tight seal.

Starting at: $419.62

See chart below and click a model number

Product Details

Construction: Constructed of rugged steel.
Size: Drum Funnel units have an overall size of 12-15/16" wide x 11-11/32" diameter x 18-1/8" high. Units are 29-25/32" high when opened, feature a funnel size of 11-11/32" in diameter, and a 6" shaft.
Color: Models are painted Beacon red.
Capacity: This Drum Funnel unit is for use with 55-gallon drums.
Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.

Documents

Drum Funnel - BDF Series
Model No.	Construction	Overall Size (W x D x H)	Opened Height	Funnel Diameter	Shaft Height	Bung Size	Flame Arrestor Length	For Use With	Price
1) BDF-S	Steel	12-15/16"x11-1⅓2"x18⅛"	29-25/32"	11-1⅓2"	6"	2"	8¾"	55-Gallon Drums	$419.62
