Shop Exhaust Fan

Name: Shop Exhaust Fan
Brand: Beacon
Price: Call for custom quote for your application USD
Availability: InStock

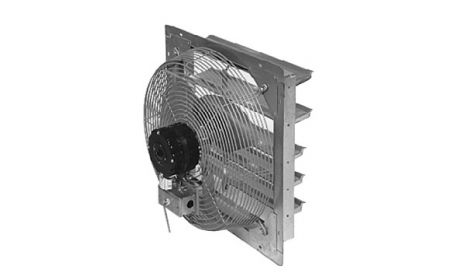

Beacon® BSME Series

Shop Exhaust Fan is ideal for exhaust air movement in industrial settings. The units are shutter mounted and are designed for inside-building installation only with vents outside. The fan eliminates the need for external framing and shutter and are ideally suited for thin-walled buildings.

Call for custom quote for your application

See chart below and click a model number

Product Details

Size: The series is available with blade diameters of 12", 18", 24", or 30".
Electrical: The Shop Exhaust Fan unit's motor is 115 V AC, 1 phase, 60 Hz totally enclosed and permanently lubricated. It features a pull chain switch and has no cord. A junction box is provided for direct wiring.
Weight: Models come in weights of 16, 25, 47, and 54 lbs.
Standard: The Shop Exhaust Fan unit meets OSHA standards and is UL-listed.
Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.

Documents

Prop. 65 WARNING

Shop Exhaust Fan - BSME Series
Model No.	Blade Diameter	Motor Horsepower	AMPS High	CFM High	CFM Med.	CFM Low	Overall Size (W x L)	Note	Price
1) BSME-12	12"	1/12	1.1	2750	2200	1600	15"x15"	A	$Call
2) BSME-18	18"	⅛	2.2	5750	4700	3200	21"x21"	A	$Call
3) BSME-24	24"	¼	2.5	6800	---	5000	27"x27"	A	$Call
4) BSME-30	30"	¼	2.7	7900	---	6000	33"x33"	A	$Call
Notes: A: Venturi Not Available
