Warehouse Fan

Name: Warehouse Fan
Brand: Beacon
Price: Call for custom quote for your application USD
Availability: InStock

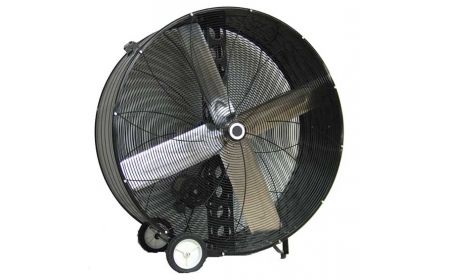

Beacon® BDDB-C Series

The Warehouse Fan is designed as a belt drive drum fan. This series features 3 paddle-style steel blades and rolls on 8" rubber wheels. Operated via a rocker switch. These units do not have a totally enclosed motor and therefore should only be used in clean and dry settings. Series meets OSHA standards and is UL listed.

Call for custom quote for your application

See chart below and click a model number

Product Details

Size: Units feature a blade diameter of 42".
Power: Warehouse Fan units have 13500 CFM on high and 11000 CFM on low. Amp on high is 4.3 amps.
Weight: 156 lbs.
Standard: The Warehouse Fan comes standard with an 8' long SJT type 3 conductor cord and a 2-speed, 1/2 HP, 115V, single phase ball bearing motor.
Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.

Documents

Prop. 65 WARNING

Warehouse Fan - BDDB-C Series
Model No.	Blade Diameter	Amp High	CFM High	CFM Low	Motor HP	Voltage	Phase	Speeds	Cord Length	Price
1) BDDB-C-42	42"	4.3	13500	11000	½	115V	Single	2	8'	$Call
