Cable Cord Covers - Multi Channel Cable Protectors - BYJ5-125 series

Beacon® BYJ5-125 Series

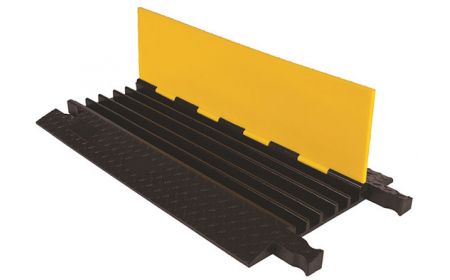

The Cable Cord Covers are designed for industrial, commercial, public or private applications. These Multi 5 Channel Cable Protectors can be connected with multiple units to form long runs, turns, and four-way cross sections.
Starting at: $392.26

See chart below and click a model number

Product Details

  • Construction: Designed specifically with 5 channels with heavy duty hinge.
  • Color: Yellow and Black combination are the standard colors.
  • Usage: Designed to protect cables and hoses with up to 1" outside diameter.
  • Capacities: Maximum load is 16,300 lbs. per tire (7,399 kg) or (32,600 lbs. per axle (14,787 kg). Maximum load tested at 70 degrees Fahrenheit (21 Celsius).
  • Options: Different color option combinations are available including yellow, orange, blue, grey and black. Minimum order for special color combination.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.

Documents

Options

Cable Cord Covers - BYJ5-125 Series
Model No. Length Width Height Channel Width Channel Height Capacity Per Tire (LBS) Capacity Per Axle (LBS) Channels Color Price
1) BYJ5-125-Y/B 36" 19.75" 1.875" 1.35" 1" 16,300 32,600 5 Yellow/Black $392.26
2) BYJ5-125-B/B 36" 19.75" 1.875" 1.35" 1" 16,300 32,600 5 Black/Black $607.15
OPTION
Model No. Description Length Width Height Channel Width Channel Height Color Price
3) BYJ5TL-125-Y/B 45 Degree Left Turn 24" 19.75" 1.875" 1.25" 1.325" Yellow/Black $241.47
4) BYJ5TL-125-B/B 45 Degree Left Turn 24" 19.75" 1.875" 1.25" 1.325" Black/Black $373.71
5) BYJ5TL-125-Y/Y 45 Degree Left Turn 24" 19.75" 1.875" 1.25" 1.325" Yellow/Yellow $373.71
6) BYJ5TR-125-Y/B 45 Degree Right Turn 24" 19.75" 1.875" 1.25" 1.325" Yellow/Black $241.47
7) BYJ5TR-125-B/B 45 Degree Right Turn 24" 19.75" 1.875" 1.25" 1.325" Black/Black $373.71
8) BYJ5TR-125-Y/Y 45 Degree Right Turn 24" 19.75" 1.875" 1.25" 1.325" Yellow/Yellow $373.71

9) BYJ5EB-125-Y End Caps (Pair) Female: 7.375", Male: 4.25" 19.75" 1.875" 1.25" 1.125" Yellow $213.04
Model No. Description Length Width Height Channel Width Channel Height Color Price
10) BYJ5X-125-Y/B 90 Degree 4-Way Cross 28.5"; 24.5" 19.75" 1.875" 1.339" 1.325" Yellow/Black $531.65
11) BYJ5X-125-B/Y 90 Degree 4-Way Cross 28.5"; 24.5" 19.75" 1.875" 1.339" 1.325" Black/Yellow $822.88
Model No. Description Length Width Height Cable Ramp Capacity Rear Wheels Front Casters Price
12) BCT4W-ST Cable Ramp Storage and Transport Cart 32" 19" 42" 10 Two 8" solid rubber Two 5" molded-on-rubber swivel with locks $677.55
