Cable Ramps

Name: Cable Ramps
Brand: Beacon
Price: 188.10 USD
Availability: InStock

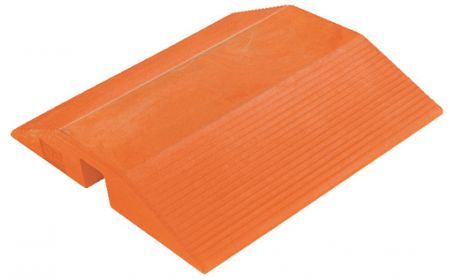

Cable Ramps - Urethane Hose Bridge - BURTH series

Beacon® BURTH Series

The Cable Ramps guard against damage to cords, wires, and cables due to personnel or cart traffic. These Urethane Hose Bridge units are designed for light traffic and slow applications only.

Starting at: $188.10

See chart below and click a model number

Product Details

Construction: Cable Ramps are made of durable urethane.
Size: Models come in several sizes, 24 inches wide x 24 inches long, 24 inches wide x 36 inches long, or 24 inches wide x 48 inches long. The inside usable span to protect the cables is 3" wide x 3" high.
Weight: Net weight ranges from 20, 30, or 40 lbs. depending on model.
Capacity: This series will hold capacities up to 100 PSI rated at 2,400 lbs. providing less than 10% deflection.
Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.

Documents

Prop. 65 WARNING

Cable Ramps - BURTH Series
Model No.	Overall Size (W x L)	Usable Span (W x H)	Capacity	Price
1) BURTH-24	24"x24"	3"x3"	2,400 lbs.	$188.10
2) BURTH-36	24"x 36"	3"x3"	2,400 lbs.	$272.08
3) BURTH-48	24"x48"	3"x3"	2,400 lbs.	$359.91
