Hose Ramp

Hose Ramp - Industrial Traffic Cable Bridge - BFHCR series

Beacon® BFHCR Series

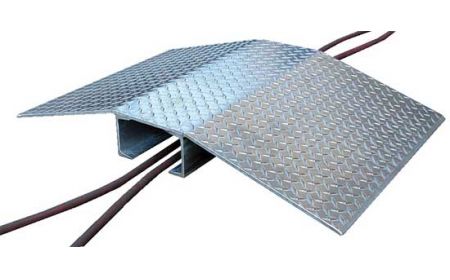

The Hose Ramp is your standard first choice to protect hoses and cables from damage due to cart and employee traffic. Industrial Traffic Cable Bridge units are available with a variety of opening sizes in order to fit your specific application.
Starting at: $474.27

See chart below and click a model number

Product Details

  • Construction: Hose Ramps are fabricated lightweight aluminum 3/8" treadplate. All welded.
  • Size: Units are either 24" or 48" wide and range in length from 36" to 48". Usable spans range in width from 4" to 16" and usable heights are either 3" or 4".
  • Weight: Net weight ranges from 55 up to 108 lbs. depending on choice of model.
  • Capacity: 2,000 lbs.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.

Documents
Hose Ramp - BFHCR Series
Model No. Overall Size (W x L) Usable Span (W x H) Capacity (LBS) Price
1) BFHCR-24-36-4 24"x36" 4"x3" 2,000 $474.27
2) BFHCR-24-40-8 24"x40" 8"x3" 2,000 $515.05
3) BFHCR-24-44-12 24"x44" 12"x3" 2,000 $548.16
4) BFHCR-24-48-16 24"x48" 16"x3" 2,000 $559.53

5) BFHCR-24-36-4-4H 24"x36" 4"x4" 2,000 $474.27
6) BFHCR-24-40-8-4H 24"x40" 8"x4" 2,000 $515.05
7) BFHCR-24-44-12-4H 24"x44" 12"x4" 2,000 $548.16
8) BFHCR-24-48-16-4H 24"x48" 16"x4" 2,000 $559.53

9) BFHCR-48-36-4 48"x36" 4"x3" 2,000 $923.42
10) BFHCR-48-40-8 48"x40" 8"x3" 2,000 $994.58
11) BFHCR-48-44-12 48"x44" 12"x3" 2,000 $1,056.88
12) BFHCR-48-48-16 48"x48" 16"x3" 2,000 $1,121.81

Hose Ramp - BFHCR Series (continued)
Model No. Overall Size (W x L) Usable Span (W x H) Capacity (LBS) Price
13) BFHCR-48-36-4-4H 48"x36" 4"x4" 2,000 $923.42
14) BFHCR-48-40-8-4H 48"x40" 8"x4" 2,000 $994.58
15) BFHCR-48-44-12-4H 48"x44" 12"x4" 2,000 $1,056.88
16) BFHCR-48-48-16-4H 48"x48" 16"x4" 2,000 $1,121.81

WarningPROP 65 WARNING

For California Residents: www.P65Warnings.ca.gov
Products on this page may lead to cancer or reproductive harm.
