Modular Cable Protectors

Name: Modular Cable Protectors
Brand: Beacon
Price: 180.20 USD
Availability: InStock

Modular Cable Protectors - Modular Cable Ramps - BYJ5-125-AMS series

Beacon® BYJ5-125-AMS Series

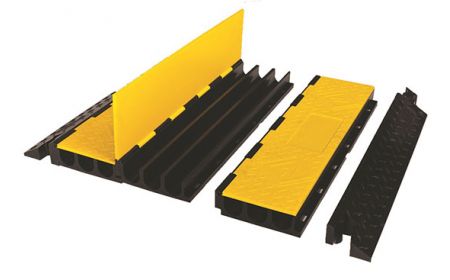

The Modular Cable Protectors are designed to expand cord and hose ramps using center pieces and ramps to form a complete system. These Modular Cable Ramps are for heavy duty use.

Starting at: $180.20

See chart below and click a model number

Product Details

Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.

Documents

Modular Cable Protectors - BYJ5-125-AMS Series
Model No.	Description	Length	Width	Height	Channel Width	Channel Height	Capacity Per Tire (LBS)	Capacity Per Axle (LBS)	Channels	Color	Price
1) BYJ3-225-AMS-Y/B	Assembled - Center Section and 2 Ramps	36"	18.61"	3"	2.25"	2.25"	14,210	28,420	3		$511.28

2) BYJ5-125-AMS-Y/B	Assembled - Center Section and 2 Ramps	36"	19.75"	2"	1.375"	1.25"	16,300	32,600	5	Yellow/Black	$508.80
3) BYJ5-125-AMS-Y/Y	Assembled - Center Section and 2 Ramps	36"	19.75"	2"	1.375"	1.25"	16,300	32,600	5	Yellow/Yellow	$508.80
Model No.	Description				Length	Width	Height	Channel Width	Channel Height	Color	Price
4) BYJ3-225-AMS-CTR-Y/B	Center Section				36"	9.87"	3"	2.25"	2.25"	Yellow/Black	$360.40
Modular Cable Protectors - BYJ5-125-AMS Series (continued)
Model No.	Description				Length	Width	Height	Channel Width	Channel Height	Color	Price
5) BYJ5-125-AMS-CTR-Y/B	Center Section				36"	11.75"	1.875"	1.375"	1.25"	Yellow/Black	$392.20
6) BYJ5-125-AMS-CTR-Y/Y	Center Section				36"	11.75"	1.875"	1.375"	1.25"	Yellow/Yellow	$392.20
Model No.	Description						Length	Width	Height	Color	Price
7) BYJ3-225-AMS-F-B	Female Ramp						36"	5.5"	3"	Black	$190.80
8) BYJ5-125-AMS-F-B	Female Ramp						36"	5.125"	2"	Black	$180.20
9) BYJ3-225-AMS-M-B	Male Ramp						36"	4.7"	3"	Black	$190.80
10) BYJ5-125-AMS-M-B	Male Ramp						36"	5"	2"	Black	$190.80
11) BYJ5I-125-F-Y/B	Female Interconnect						17.88"	19.75"	1.875"	Yellow/Black	$227.24
12) BYJ5I-125-M-Y/B	Male Interconnect						17.88"	19.75"	1.875"	Yellow/Black	$227.24
