Wire Ramp Cover

Name: Wire Ramp Cover
Brand: Beacon
Price: 29.23 USD
Availability: InStock

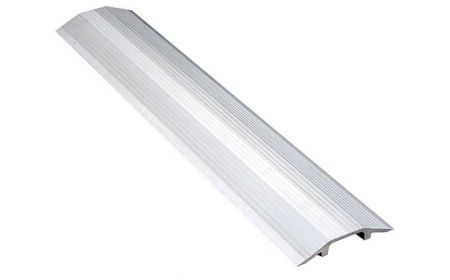

Wire Ramp Cover - Aluminum Hose Bridge - BWR series

Beacon® BWR Series

The Wire Ramp Cover enables fork trucks, lifts, carts, and workers to safely cross over facility cords and cables. Aluminum Hose Bridge units are lightweight to enable easy-to-move portability. Multiple colors allow you to color code areas or allow these units to blend into their surroundings.

Starting at: $29.23

See chart below and click a model number

Product Details

Construction: Wire Ramp Cover features durable extruded aluminum construction. Units are manufactured with serrated edges on the top surface which provide traction for cross-over traffic.
Size: Widths range from 2-7/8" to 21-1/6" and heights from 7/16" to 3-1/2". Standard lengths are from 24" to 72". Please contact Beacon for your specific applications.
Color: Standard models with no suffixes are unfinished. Available colors are yellow (-Y), yellow and black stripes (-YB), black (-BK), and brown (-BRN). Contact Beacon for special colors.
Weight: Weights vary from 2 lbs. to 105 lbs. depending on the model.
Capacity: Features single wheel capacity of either 2,500 or 10,000 lbs.
Options: Contact Beacon for lengths up to 25 feet.

Documents

Prop. 65 WARNING

Cable Ramp - BWR Series
Model No.	Overall (W x H)	Length	Usable Span (W x H)	Single Wheel Capacity (LBS)	Finish	Price
1) BWR-24	2⅞"x7/16"	24"	1¼"x5/16"	2,500	Aluminum	$29.23
2) BWR-36	2⅞"x7/16"	36"	1¼"x5/16"	2,500	Aluminum	$54.54
3) BWR-48	2⅞"x7/16"	48"	1¼"x5/16"	2,500	Aluminum	$66.04

4) BHCR-24	7⅛"x1⅛"	24"	2⅝"x¾"	10,000	Aluminum	$93.94
5) BHCR-24-Y	7⅛"x1⅛"	24"	2⅝"x¾"	10,000	Yellow	$102.84
6) BHCR-24-YB	7⅛"x1⅛"	24"	2⅝"x¾"	10,000	Yellow and Black	$130.83

7) BHCR-36	7⅛"x1⅛"	36"	2⅝"x¾"	10,000	Aluminum	$121.93
8) BHCR-36-Y	7⅛"x1⅛"	36"	2⅝"x¾"	10,000	Yellow	$137.20
9) BHCR-36-YB	7⅛"x1⅛"	36"	2⅝"x¾"	10,000	Yellow and Black	$180.45
10) BHCR-36-BK	7⅛"x1⅛"	36"	2⅝"x¾"	10,000	Black	$141.01
11) BHCR-36-BRN	7⅛"x1⅛"	36"	2⅝"x¾"	10,000	Brown	$141.01
Cable Ramp - BWR Series (continued)
Model No.	Overall (W x H)	Length	Usable Span (W x H)	Single Wheel Capacity (LBS)	Finish	Price
12) BHCR-48	7⅛"x1⅛"	48"	2⅝"x¾"	10,000	Aluminum	$176.72
13) BHCR-48-Y	7⅛"x1⅛"	48"	2⅝"x¾"	10,000	Yellow	$197.07
14) BHCR-48-YB	7⅛"x1⅛"	48"	2⅝"x¾"	10,000	Yellow and Black	$251.77

15) BLHCR-36	9⅛"x1½"	36"	2½"x1¼"	10,000	Aluminum	$167.88
16) BLHCR-48	9⅛"x1½"	48"	2½"x1¼"	10,000	Aluminum	$230.10
17) BLHCR-60	9⅛"x1½"	60"	2½"x1¼"	10,000	Aluminum	$289.95
18) BLHCR-72	9⅛"x1½"	72"	2½"x1¼"	10,000	Aluminum	$348.38

19) BXHCR-36	21-1/6"x3½"	36"	4½"x3"	10,000	Aluminum	$349.77
20) BXHCR-48	21-1/6"x3½"	48"	4½"x3"	10,000	Aluminum	$394.13
21) BXHCR-60	21-1/6"x3½"	60"	4½"x3"	10,000	Aluminum	$479.51
22) BXHCR-72	21-1/6"x3½"	72"	4½"x3"	10,000	Aluminum	$573.65
