Air Scissor Lift

Air Scissor Lift - Pneumatic Lift Cart - BAIR Series

Beacon® BAIR-D Series

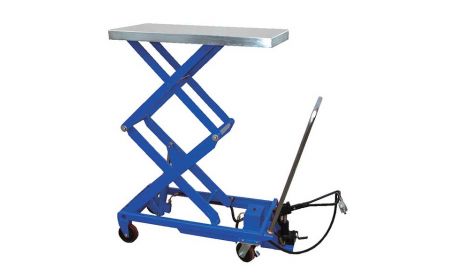

The versatile Air Scissor Lift offers two lifting methods, manual foot pump and factory air for automated lifting. This Pneumatic Lift Cart is a portable hydraulic unit, capable of lifting up to 2,000 lbs. for worker convenience and comfort. Apply the braking system on the rear wheels for optimum security.
Starting at: $1,443.68

See chart below and click a model number

Product Details

  • Construction: Air Scissor Lift features either steel or partially stainless steel construction. Models with suffix -PSS have stainless steel platforms, handles, frames, hardware, and caster rigs and zinc-plated scissor legs, hydraulic cylinder, and pump assembly.
  • Size: Platforms range from 19-3/4" up to 24" in width and from 35-1/2" up to 63" in length.
  • Service Range: Units have a lowered height from 13-3/4" to 19-1/2" and a raised height from 35-1/2" up to 67".
  • Operating Range: Temperature operating range: ≥40°F to ≤150°F.
  • Power: Air by others.
  • Weight: Model weights vary from 317 to 586 lbs.
  • Operation: Unit includes a unique two method operation to raise the platform. For minor adjustments the manual foot pump can be utilized or use the automatic factory air/oil control to effortlessly lift up to 2,000 lbs.
  • Standard: Air Scissor Lift units come standard with poly-on-poly two rigid front casters and two swivel rear casters with brakes.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
  • Note: Testing, adjustments, training and scheduled maintenance procedures by others.

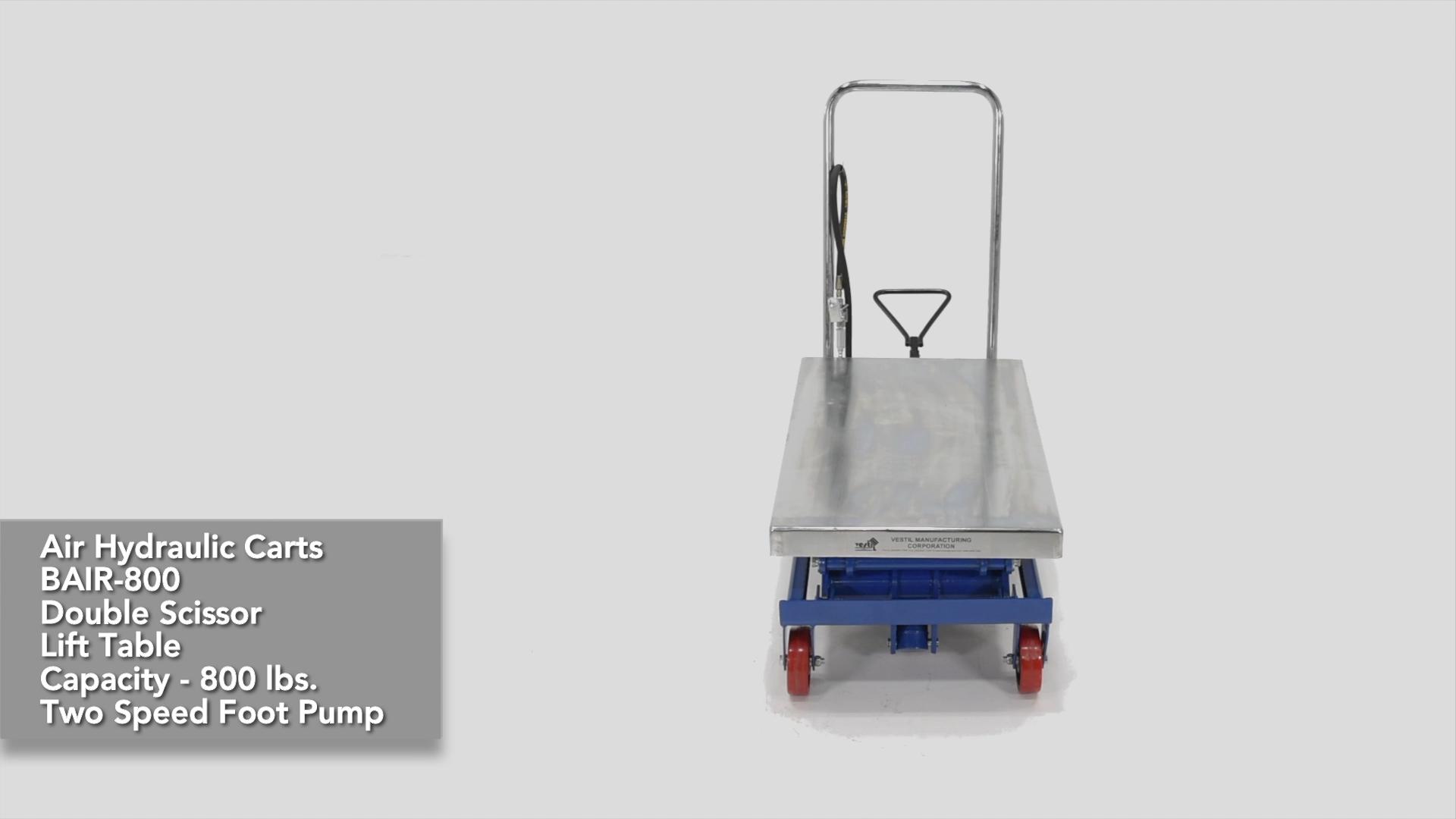

  • BAIR-800-D360° View
  • BAIR-1000360° View
  • BAIR-2000360° View

Documents



Air Scissor Lift - BAIR-D Series
Model No. Construction Platform Size (W x L) Capacity (LBS) Service Range Caster Size Price
1) BAIR-800-D Steel 20"x35½" 800 13¾" to 51" 5"x1½" $1,724.74
2) BAIR-1000 Steel 19¾"x32½" 1,000 15¾" to 35½" 5"x1½" $1,443.68
3) BAIR-1000-LD Steel 31½"x63" 1,000 15½" to 35½" 5"x1½" $2,246.30
4) BAIR-1500-D Steel 24"x47¼" 1,500 19½" to 67" 6"x2" $2,524.79
5) BAIR-1750 Steel 20"x 39½" 1,750 14¼" to 39½" 6"x2" $1,789.67
6) BAIR-2000 Steel 24"x 47¼" 2,000 15" to 39½" 6"x2" $1,933.38

7) BAIR-800-D-PSS Partially Stainless Steel 20"x35½" 800 13¾" to 51" 5"x1½" $3,823.44
8) BAIR-1000-PSS Partially Stainless Steel 19¾"x32½" 1,000 15¾" to 35½" 5"x1½" $3,238.45
9) BAIR-1000-LD-PSS Partially Stainless Steel 31½"x63" 1,000 15½" to 35½" 5"x1½" $4,421.43
10) BAIR-1500-D-PSS Partially Stainless Steel 24"x47¼" 1,500 19½" to 67" 6"x2" $6,339.62
11) BAIR-2000-PSS Partially Stainless Steel 24"x47¼" 2,000 15" to 39½" 6"x2" $4,846.22
