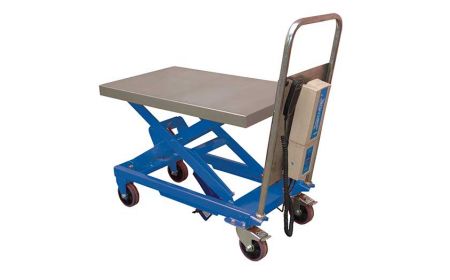

Elevating Portable Cart

Elevating Portable Cart -  Electric Positioning Cart - BCART-500-LA Series

Beacon® LA Series

The Elevating Portable Cart raises and lowers work loads and transports them from workstation to workstation. This Electric Positioning Cart is raised and lowered with an electric linear actuator for precise positioning. The linear actuator will not allow the platform to drift down - a common problem with hydraulic carts. This product features an emergency stop button on the hand control.
Starting at: $1,659.93

See chart below and click a model number

Product Details

  • Construction: Elevating Portable Cart BCART-500-LA is steel.
  • Size: This BCART-400-LA and BCART-400-D-LA has a platform size of 23-5/8" wide x 35-1/2" long and the BCART-500-LA has a platform size of 19-1/2" wide x 32" long.
  • Service Range: All units have a lowered height of 15". The BCART-400-LA has a raised height of 34". The BCART-400-D-LA has a raised height of 50". The BCART-500-LA has a raised height of 33".
  • Electrical: The series is powered with a 12 V DC battery and features an on-board charger. The hand-held pendant control connects to power unit with a 6' coil cord.
  • Power: Models that include BCART-400 have (2) 12V AGM batteries and a bench top charger. Model BCART-500-LA has a lithium battery with a On Board Charger.
  • Weight: weights range from 225 - 310
  • Capacity: Models feature a range from 400- 500-lb. capacity.
  • Standard: The Elevating Portable Cart includes two rigid and two swivel poly-on-poly casters.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
  • Note: Testing, adjustments, training and scheduled maintenance procedures by others.

Documents



Elevating Portable Cart - BCART - LA Series
Model No. Capacity (lbs.) Platform size (W x L) Lowered Height Raised Height Battery Type Battery Charger Type Construction Price
1) BCART-400-LA 400 23⅝"x35½" 15" 34" (2) 12V AGM Batteries Bench Top Charger Steel $1,892.69
2) BCART-400-D-LA 400 23⅝"x35½" 15" 50" (2) 12V AGM Batteries Bench Top Charger Steel $2,668.62

3) BCART-500-LA 500 19½"x32" 15" 33" Lithium Battery On Board Charger Steel $1,659.93
