Hydraulic Elevating Cart

Hydraulic Elevating Cart - Portable Hydraulic Lift Table - BZ-BDSL Series

Beacon® BZ-BDSL Series

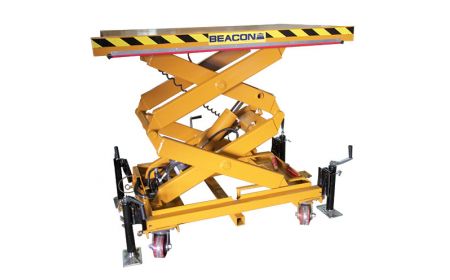

The movable Hydraulic Elevating Cart is designed with several type stabilizers. This Mobile Scissor Lift unit includes removable outriggers on (3) three sides, locking ears on (1) one side of the deck perimeter face, floor locks on each end of the sub-frame, and a zero leak valve for precision locking and holding. In addition to this convenience, the units have a raised height up to 83 inches and a raising capacity of up to 6,000 lbs.
Call for custom quote for your application

See chart below and click a model number

Product Details

  • Construction: This series is designed with four polyurethane casters allowing for the ease of mobility. The series includes (4) four - 6" diameter 90 degree swivel wheels with locks.
  • Power: Unit is available as AC or DC Power.
  • Installation: This unit is portable and designed to pushed through a choke point and then outriggers installed for stabilization at the load area. Floor locks operate with the weight of the cart.
  • Operation: Step 1: Cart pushed into position against table platform. Step 2: Outriggers are installed. Step 3: Cart is raised. Step 4: Locking pins inserted into ears. Step 5: Payload is moved on cart deck. Step 6: Remove pins. Step 7: Lower cart. Step 8: Move cart.
  • Standard: The Hydraulic Elevating Cart includes an internal hydraulic velocity fuse in each hydraulic cylinder.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
  • Note: Testing, adjustments, training and scheduled maintenance procedures by others.

Documents



Hydraulic Elevating Cart - BZ-BDSL Series
Model No. Travel Capacity (LBS) Edge Load Static (LBS) Edge Load Rolling (LBS) Platform Std. Platform Max. Lowered Height Raised Height Motor HP Cylinder Price
1) BZ-BDSL-20-060 60" 2,000 1,000 670 30"x48" 48"x72" 17" 77" 1 1 $Call
2) BZ-BDSL-40-060 60" 4,000 2,000 1,340 30"x48" 48"x72" 21" 81" 1 1 $Call
3) BZ-BDSL-60-060 60" 6,000 3,000 2,000 30"x48" 48"x72" 23" 83" 1 1 $Call
