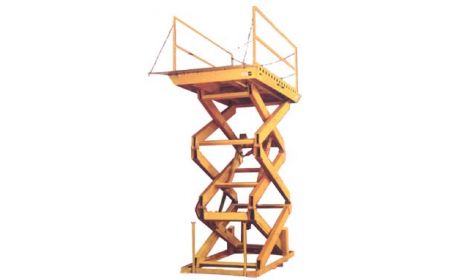

BTSL-30-144 Electric Scissor Lift

Name: BTSL-30-144 Electric Scissor Lift
Brand: Beacon
Availability: InStock

Electric Scissor Lift - Hydraulic Lifting Table - BTSL Series

Beacon® BTSL Series

Model Number:

BTSL-30-144

Travel (inches): 144
Cap Lbs: 3000
Edge Load Static: 1500
Edge Load Rolling: 1000
Platform Standard: 48 x 72
Platform Maximum: 60 x 96
Base: 48 x 72
Lowered Height (inches): 19.25
Raised Height (inches): 163.25
Approx Up Speed: 25
Motor HP: 4.8
Cylinders: 2

Shipping Weight (LBS): 3000

Additional Notes: *Standard platforms. Oversized platforms, beveled toeguards, roller shades, accordion skirting and electrical tape switches will affect overall size. Power requirements depend upon frequency and type of operation and require specific selection. 1 1/2HP Power Units are internal as standard equipment. 3HP and 4.8Hp Power Units are remote as standard equipment. Standard power supply for 1 1/2HP Power Unit is 230V/1PH/60Hz. Optional power supply for
Category: Electric Scissor Lift

Prop 65 WARNING

Product Info PDF: BTSL-Tech-Sheet.pdf
Additional Product PDF: BTSL-Tech-Sheet-2.pdf

each

Beacon® BTSL Series

Model Number:

BTSL-30-144

This product is made to order for each application and requires a survey sheet. Please call Beacon at 314-487-7600.

OPTIONS:
1) BTSL Option: Aluminum Treadplate, Bridge with Hinge Assy (2 items)
2) BTSL Option: Steel Treadplate, Bridge with Hinge Assy (2 items)
3) BTSL Option: Steel Treadplate Approach Ramp (1 items)
4) BTSL Option: Electrical (18 items)
5) BTSL Option: Handrails / Toeboards (4 items)
6) BTSL Option: Hydraulic - Power Unit Assembly (18 items)
7) BTSL Option: Platform (10 items)
8) BTSL Option: Safety Skirting (2 items)

It is the customer's responsibility to verify BTSL-30-144 correctness of fit for applications. It is the customer's responsibility to verify that this Electric Scissor Lift - BTSL Series complies with all safety laws, codes and regulations.
