Heavy Capacity Scissor Lift

Heavy Capacity Scissor Lift - Heavy Duty Lift Table - BMLTDW Series

Beacon® BMLTDW Series

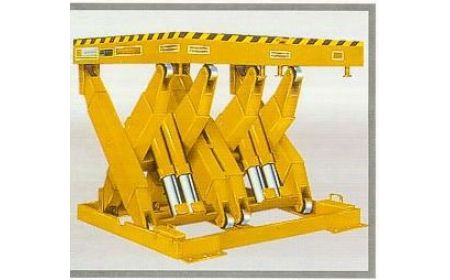

The double-wide Heavy Capacity Scissor Lift engineering technology is an electro-hydraulic high-capacity scissor lift. These Heavy Duty Lift Table models feature a smooth steel platform. They also feature dual safety restraint bars. This unit is supplied with standard straight toe guards for surface mounting. If pit mounting is required, please specify when ordering, and beveled toe guards will be supplied at no charge. Call Beacon for optional electric toe guard pricing.
Call for custom quote for your application

See chart below and click a model number

Product Details

  • Construction: Features steel construction.
  • Projection: For optional beveled toe guards add 8" to the width and length. For optional straight toe guards with electric toe guard tape switch add 4" to the width and length. Specify the option during quoting for special pricing.
  • Size: The series comes in various standard platform sizes ranging from 96" x 60" to 96" x 108" and in maximum platform sizes ranging from 120" x 84" to 120" x 132".
  • Service Range: The Heavy Capacity Scissor Lift unit comes in lowered heights of 16" or 20" and in a variety of raised heights ranging from 46" to 92".
  • Electrical: 460 V AC, 3 Phase, 60 Hertz is Standard. (Optional electrical changes are available including Voltage, Phase and Hertz at an additional charge).
  • Powered: Optional Air (Rotary Air/Oil or Reciprocating Air/Oil) is available at an additional charge.
  • Installation: Surface or pit mount will end up with different overall heights. The three vertical geometric properties to be aware of is the (1) Lowered height (2) Travel (3) Overall height. When mounting in a pit, your travel will end up as your overall height.
  • Weight: Models come in a variety of weights ranging from 6,000 to 10,400 lbs.
  • Scope: It is the customer's responsibility to meet all federal, state and local codes regarding height restrictions and safety requirements.
  • Usage: This item is made to order; therefore, delivery times are not guaranteed. Production schedules may fluctuate due to supply chain dynamics or unforeseen circumstances. Fulfillment times may vary and lead times are quoted as approximate only. A signed approval drawing is required prior to production. Freight, site preparation, installation and training are not included. The customer is responsible for ensuring the correctness of fit.
  • Capacity: Models are available in a variety of capacities ranging from 25,000 to 60,000 lbs. Published capacities are rated as evenly distributed when the load is applied in the lowered position and then raised. Any applied load in the raised position, centered, end or side derates the published capacity, contact Beacon for specifications.
  • Standard: Smooth steel plate deck surface.
  • Options: Steel treadplate deck surface.
  • Limited Warranty: To keep the Heavy Capacity Scissor Lift warranty valid you cannot cantilever the geometric ratio weight beyond the center of gravity. All units are quoted the capacity within its deck size and must keep with a uniformly distributed load.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
  • Note: Payment Terms: This product is special and requires a 20% deposit at time of order, 20% prior to shipment and balance net 30 with approved credit.

Documents
Heavy Capacity Scissor Lift - BMLTDW Series
Model No. Travel (inches) Cap Lbs Axle Load Max, Concentrated Platform Std. Platform Max. Base Lowered Height (inches) Raised Height (inches) Approx Up Speed Motor HP Cyl. Note Price
1) BMLTDW-25-30 30 25000 20000 96x60 120x84 96x60 16 46 30 5 2 A $Call
2) BMLTDW-30-30 30 30000 24000 96x60 120x84 96x60 16 46 30 5 2 A $Call
3) BMLTDW-35-30 30 35000 28000 96x60 120x84 96x60 16 46 50 5 4 A $Call
4) BMLTDW-40-30 30 40000 32000 96x60 120x84 96x60 20 50 50 5 4 A $Call
5) BMLTDW-50-30 30 50000 40000 96x60 120x84 96x60 20 50 70 5 6 A $Call
6) BMLTDW-60-30 30 60000 48000 96x60 120x84 96x60 20 50 70 5 6 A $Call

7) BMLTDW-25-36 36 25000 20000 96x60 120x84 96x60 16 52 32 5 2 A $Call
8) BMLTDW-30-36 36 30000 24000 96x60 120x84 96x60 16 52 32 5 2 A $Call
9) BMLTDW-35-36 36 35000 28000 96x60 120x84 96x60 16 52 55 5 4 A $Call
10) BMLTDW-40-36 36 40000 32000 96x60 120x84 96x60 20 56 55 5 4 A $Call
11) BMLTDW-50-36 36 50000 40000 96x60 120x84 96x60 20 56 75 5 6 A $Call
12) BMLTDW-60-36 36 60000 48000 96x60 120x84 96x60 20 56 75 5 6 A $Call

13) BMLTDW-25-42 42 25000 20000 96x72 120x96 96x72 16 58 30 5 2 A $Call
14) BMLTDW-30-42 42 30000 24000 96x72 120x96 96x72 16 58 30 5 2 A $Call
15) BMLTDW-35-42 42 35000 28000 96x72 120x96 96x72 16 58 50 5 4 A $Call
16) BMLTDW-40-42 42 40000 32000 96x72 120x96 96x72 20 62 50 5 4 A $Call
17) BMLTDW-50-42 42 50000 40000 96x72 120x96 96x72 20 62 70 5 6 A $Call
18) BMLTDW-60-42 42 60000 48000 96x72 120x96 96x72 20 62 70 5 6 A $Call

Heavy Capacity Scissor Lift - BMLTDW Series (continued)
Model No. Travel (inches) Cap Lbs Axle Load Max, Concentrated Platform Std. Platform Max. Base Lowered Height (inches) Raised Height (inches) Approx Up Speed Motor HP Cyl. Note Price
19) BMLTDW-25-48 48 25000 20000 96x72 120x96 96x72 16 64 30 5 2 A $Call
20) BMLTDW-30-48 48 30000 24000 96x72 120x96 96x72 16 64 30 5 2 A $Call
21) BMLTDW-35-48 48 35000 28000 96x72 120x96 96x72 16 64 55 5 4 A $Call
22) BMLTDW-40-48 48 40000 32000 96x72 120x96 96x72 20 68 55 5 4 A $Call
23) BMLTDW-50-48 48 50000 40000 96x72 120x96 96x72 20 68 75 5 6 A $Call
24) BMLTDW-60-48 48 60000 48000 96x72 120x96 96x72 20 68 75 5 6 A $Call

25) BMLTDW-25-54 54 25000 20000 96x84 120x108 96x84 16 70 40 5 2 A $Call
26) BMLTDW-30-54 54 30000 24000 96x84 120x108 96x84 16 70 40 5 2 A $Call
27) BMLTDW-35-54 54 35000 28000 96x84 120x108 96x84 16 70 75 5 4 A $Call
28) BMLTDW-40-54 54 40000 32000 96x84 120x108 96x84 20 74 75 5 4 A $Call
29) BMLTDW-50-54 54 50000 40000 96x84 120x108 96x84 20 74 100 7.5 6 A $Call
30) BMLTDW-60-54 54 60000 48000 96x84 120x108 96x84 20 74 100 7.5 6 A $Call

31) BMLTDW-25-60 60 25000 20000 96x84 120x108 96x84 16 76 45 5 2 A $Call
32) BMLTDW-30-60 60 30000 24000 96x84 120x108 96x84 16 76 45 5 2 A $Call
33) BMLTDW-35-60 60 35000 28000 96x84 120x108 96x84 16 76 80 5 4 A $Call
34) BMLTDW-40-60 60 40000 32000 96x84 120x108 96x84 20 80 80 5 4 A $Call
35) BMLTDW-50-60 60 50000 40000 96x84 120x108 96x84 20 80 100 7.5 6 A $Call
36) BMLTDW-60-60 60 60000 48000 96x84 120x108 96x84 20 80 100 7.5 6 A $Call

Heavy Capacity Scissor Lift - BMLTDW Series (continued)
Model No. Travel (inches) Cap Lbs Axle Load Max, Concentrated Platform Std. Platform Max. Base Lowered Height (inches) Raised Height (inches) Approx Up Speed Motor HP Cyl. Note Price
37) BMLTDW-25-72 72 25000 20000 96x108 120x132 96x108 16 88 45 5 2 A $Call
38) BMLTDW-30-72 72 30000 24000 96x108 120x132 96x108 16 88 45 5 2 A $Call
39) BMLTDW-35-72 72 35000 28000 96x108 120x132 96x108 16 88 80 5 4 A $Call
40) BMLTDW-40-72 72 40000 32000 96x108 120x132 96x108 20 92 80 5 4 A $Call
41) BMLTDW-50-72 72 50000 40000 96x108 120x132 96x108 20 92 100 7.5 6 A $Call
42) BMLTDW-60-72 72 60000 48000 96x108 120x132 96x108 20 92 100 7.5 6 A $Call
Notes:
A: Standard platforms only. **Load that can be rolled over the side or end in any raised position. (Standard platform only.) ***See Options
