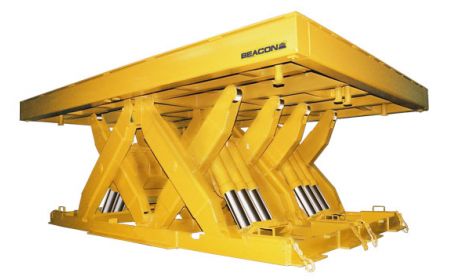

BMLTQD-120-30 Heavy Duty Scissor Lift

Heavy Duty Scissor Lift - Custom Lifts - BMLTQD Series

Beacon® BMLTQD Series

Model Number:

BMLTQD-120-30



Travel: 30”
Cap Lbs: 120000
Axle Load Max, Concentrated: 96000
Platform Standard: 96 x 120
Platform Maximum: 120 x 168
Base: 96 x 120
Lowered Height (inches): 20
Raised Height (inches): 50
Approx Up Speed: 100
Motor HP: 10
Cylinders: 12

Shipping Weight (LBS): 13600

Additional Notes:  *Standard platforms only. **Load that can be rolled over the side or end in any raised position. (Standard platform only.) Oversized platforms, beveled toeguards, roller shades, accordion skirting and electrical tape switches will affect overall size. Power requirements depend upon frequency and type of operation and require specific selection. Note: Where available power supply is 208V/3PH booster transformers are required for 240V/3PH at motor, see options. Conforms to or exceeds ANSI standard MH29.1-1994.
Category: Heavy Duty Scissor Lift

Prop 65 WARNING

Product Info PDF: BMLTQD-Tech-Sheet.pdf
Additional Product PDF: BMLTQD-Tech-Sheet-2.pdf

each
Heavy Duty Scissor Lift - Custom Lifts - BMLTQD Series

Beacon® BMLTQD Series

Model Number:

BMLTQD-120-30



Travel: 30”
Cap Lbs: 120000
Axle Load Max, Concentrated: 96000
Platform Standard: 96 x 120
Platform Maximum: 120 x 168
Base: 96 x 120
Lowered Height (inches): 20
Raised Height (inches): 50
Approx Up Speed: 100
Motor HP: 10
Cylinders: 12

Shipping Weight (LBS): 13600

Additional Notes:  *Standard platforms only. **Load that can be rolled over the side or end in any raised position. (Standard platform only.) Oversized platforms, beveled toeguards, roller shades, accordion skirting and electrical tape switches will affect overall size. Power requirements depend upon frequency and type of operation and require specific selection. Note: Where available power supply is 208V/3PH booster transformers are required for 240V/3PH at motor, see options. Conforms to or exceeds ANSI standard MH29.1-1994.
Category: Heavy Duty Scissor Lift

Prop 65 WARNING

Product Info PDF: BMLTQD-Tech-Sheet.pdf
Additional Product PDF: BMLTQD-Tech-Sheet-2.pdf

This product is made to order for each application and requires a survey sheet. Please call Beacon at 314-487-7600.

  OPTIONS:
1) BMLTQD Option: Electrical (18 items)
2) BMLTQD Option: Fully Automatic Mechanical Wheel Chock (1 items)
3) BMLTQD Option: Handrails / Toeboards (4 items)
4) BMLTQD Option: Hydraulic - Power Unit Assembly (13 items)
5) BMLTQD Option: Platform (6 items)
6) BMLTQD Option: Safety Skirting (1 items)
7) BMLTQD Option: Steel Treadplate, Bridge with Hinge Assy (3 items)

It is the customer's responsibility to verify BMLTQD-120-30 correctness of fit for applications. It is the customer's responsibility to verify that this Heavy Duty Scissor Lift - BMLTQD Series complies with all safety laws, codes and regulations.

Freight charges will be added to published pricing. Tariffs or surcharges may apply to current published pricing.
