Hydraulic Lift

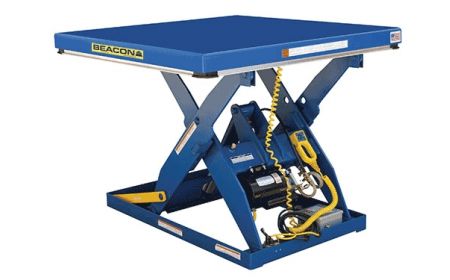

Hydraulic Lift - BEHLT Series

Beacon® BEHLT Series

The Hydraulic Lift engineering technology is designed to raise materials to the proper ergonomic height for the worker. This unit is excellent for repetitive motion at many industrial locations including manufacturing and assembly facilities.
Starting at: $4,705.10

See chart below and click a model number

Product Details

  • Construction: The Hydraulic Lift is manufactured of high-quality welded steel construction utilizing electric hydraulic power operation for long term efficiency.
  • Size: The units have deck widths ranging from 24" up to 72". Actual lengths range from 48" up to 144".
  • Service Range: The industrial lift table models have lowered heights ranging from 7" to 12" and raised heights ranging from 43" to 82".
  • Electrical: This unit is supplied with an internal 2 Hp motor, 56 frame, 460V AC, 3 Phase, 60 Hertz is standard. (Optional electrical changes are available including Voltage, Phase, and Hertz at an additional charge).

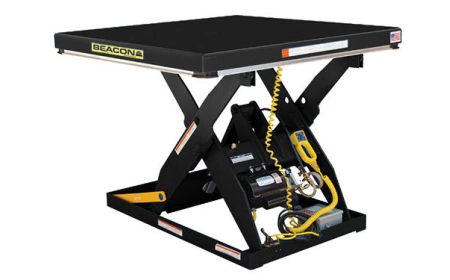

  • Color: Standard finish is Beacon Blue water-based paint. Options include other water base colors, powder coat, Steel-It Polyurethane Coating, Line-X Polyurea/Polyurethane Coating, and ZRC Cold Galvanized Compound Coating.
  • Weight: 945 to 2,415 lbs.
  • Usage: This item is made to order; therefore, delivery times are not guaranteed. Production schedules may fluctuate due to supply chain dynamics or unforeseen circumstances. Fulfillment times may vary and lead times are quoted as approximate only. A signed approval drawing is required prior to production. Freight, site preparation, installation and training are not included. The customer is responsible for ensuring the correctness of fit.
  • Operation: One to four hydraulic cylinders control the vertical deck movement. This series features lifetime-lubricated bearings and an integral maintenance prop. Travel times range from 7 to 48 seconds.
  • Capacities: 1,000 lbs. to 12,000 lbs.
  • Standard: Standard safety features include electric pinch point protection, internal brass velocity fuse, 24 V AC push-button control, a hinged maintenance prop, and an upper travel limit switch. Smooth steel plate deck surface.
  • Options: Hydraulic Lift units are available with an optional foot control. Other options include skirting, a 42" high self-locking gate, a warning light, and a warning beeper. Select any model number to view all optional upgrades. Steel treadplate deck surface.
  • Limited Warranty: One-year structural, hydraulics, and electrical. To keep the warranty valid you cannot cantilever the geometric ratio weight beyond the center of gravity. All units are quoted the capacity within its deck size and must keep with a uniformly distributed load.
  • Note: All travel times are based on a 3-phase motor.
  • BEHLT - Video
  • BEHLT - 2 - Video
  • BACC - Video
  • BEHLT - 3 - Video
  • BEHLT-4-43360° View
  • BEHLT-5-44360° View

Documents

Options

Hydraulic Lift - BEHLT Series
Model No. Vertical Travel Platform Width Platform Length Capacity (LBS) Raised Height Lowered Height Travel Time (Sec.) Note Price
1) BEHLT-1-43 36" 24"-48" 48"-72" 1,000 43" 7" 7 A $5,016.68
2) BEHLT-2-43 36" 24"-48" 48"-72" 2,000 43" 7" 11 A $5,323.17
3) BEHLT-3-43 36" 24"-48" 48"-72" 3,000 43" 7" 16 A $5,491.17
4) BEHLT-4-43 36" 24"-48" 48"-72" 4,000 43" 7" 22 A $6,592.71
5) BEHLT-5-44 36" 36"-48" 48"-72" 5,000 44" 8" 32 A $7,588.69
6) BEHLT-6-44 36" 36"-48" 48"-72" 6,000 44" 8" 32 A $8,288.20
7) BEHLT-8-44 36" 36"-48" 48"-72" 8,000 44" 8" 15 B $11,634.91
8) BEHLT-10-43 33" 40"-60" 48"-72" 10,000 43" 10" 15 B $12,470.59
9) BEHLT-12-43 33" 40"-60" 48"-72" 12,000 43" 10" 15 B $13,453.87

10) BEHLT-1-55 48" 24"-48" 64"-90" 1,000 55" 7" 11 A $6,751.62
11) BEHLT-2-55 48" 24"-48" 64"-90" 2,000 55" 7" 16 A $6,761.85
12) BEHLT-3-55 48" 24"-48" 64"-90" 3,000 55" 7" 22 A $4,705.10
13) BEHLT-4-56 48" 36"-48" 64"-96" 4,000 56" 8" 32 A $8,206.75
14) BEHLT-5-56 48" 36"-48" 64"-96" 5,000 56" 8" 32 A $8,695.20
15) BEHLT-6-56 48" 36"-48" 64"-96" 6,000 56" 8" 48 A $9,564.02
16) BEHLT-8-56 48" 36"-48" 64"-96" 8,000 56" 8" 15 B $13,937.18
17) BEHLT-10-55 45" 40"-60" 64"-96" 10,000 55" 10" 15 B $14,007.09
18) BEHLT-12-55 45" 40"-60" 64"-96" 12,000 55" 10" 20 B $15,023.55

19) BEHLT-1-67 60" 24"-48" 84"-108" 1,000 67" 7" 16 A $8,546.47
20) BEHLT-2-67 60" 24"-48" 84"-108" 2,000 67" 7" 14 A $9,022.17
21) BEHLT-3-67 60" 24"-48" 84"-108" 3,000 67" 7" 16 A $10,036.02
22) BEHLT-4-68 60" 48"-72" 96"-120" 4,000 68" 8" 26 B $12,375.14
23) BEHLT-5-68 60" 48"-72" 96"-120" 5,000 68" 8" 26 B $14,080.95
24) BEHLT-6-70 60" 48"-72" 96"-120" 6,000 70" 10" 30 B $15,138.00
25) BEHLT-8-70 60" 62"-72" 96"-120" 8,000 70" 10" 30 B $17,655.19
26) BEHLT-10-72 58" 62"-72" 96"-120" 10,000 72" 14" 30 B $17,994.83
27) BEHLT-12-72 58" 62"-72" 96"-120" 12,000 72" 14" 30 B $19,414.38

Hydraulic Lift - BEHLT Series (continued)
Model No. Vertical Travel Platform Width Platform Length Capacity (LBS) Raised Height Lowered Height Travel Time (Sec.) Note Price
28) BEHLT-1-79 72" 24"-48" 102"-120" 1,000 79" 7" 12 A $11,084.17
29) BEHLT-2-79 72" 24"-48" 102"-120" 2,000 79" 7" 16 A $11,556.08
30) BEHLT-3-82 71" 48"-72" 120"-144" 3,000 82" 11" 16 B $12,190.66
31) BEHLT-4-82 71" 48"-72" 120"-144" 4,000 82" 11" 26 B $13,910.54
32) BEHLT-5-82 71" 48"-72" 120"-144" 5,000 82" 11" 26 B $16,113.51
33) BEHLT-6-82 70" 62"-72" 120"-144" 6,000 82" 12" 30 B $17,692.22
34) BEHLT-8-82 70" 62"-72" 120"-144" 8,000 82" 12" 30 B $19,589.92
Notes:
A: Other sizes are available; Call Beacon for details
B: Externally mounted, 6.5 HP 208-230/460V 3-Phase Motor
Hydraulic Lift - BEHLT Series - QUICK SHIP
Model No. Vertical Travel Platform Width Platform Length Capacity (LBS) Raised Height Lowered Height Travel Time (Sec.) Note Price
35) BEHLT-2448-3-43-QS 36" 24" 48" 3,000 43" 7" 16   $5,195.97
36) BEHLT-3060-3-43-QS 36" 30" 60" 3,000 43" 7" 16   $5,363.97
37) BEHLT-4048-3-43-QS 36" 40" 48" 3,000 43" 7" 16   $5,363.97
38) BEHLT-4848-3-43-QS 36" 48" 48" 3,000 43" 7" 16   $5,363.97
39) BEHLT-4872-3-43-QS 36" 48" 72" 3,000 43" 7" 16   $5,363.97
40) BEHLT-3060-4-43-QS 36" 30" 60" 4,000 43" 7" 22   $6,466.78
41) BEHLT-4048-4-43-QS 36" 40" 48" 4,000 43" 7" 22   $6,465.51
42) BEHLT-4872-4-43-QS 36" 48" 72" 4,000 43" 7" 22   $6,465.51
Model No. Vertical Travel Platform Width Platform Length Capacity (LBS) Raised Height Lowered HeightLowered Height Travel Time (Sec.) Note Price
43) BEHLT-4848-4-43-QS 36" 48" 48" 4,000 43" 7" 22   $6,465.51
Notes:
A: Other sizes are available; Call Beacon for details
B: Externally mounted, 6.5 HP 208-230/460V 3-Phase Motor
