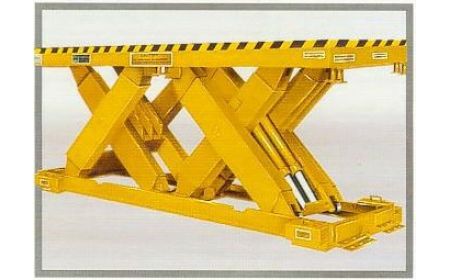

Hydraulic Platform Lift

Hydraulic Platform Lift - BMLTDL Series

Beacon® BMLTDL Series

The Hydraulic Platform Lift is a high-capacity lift. These Hydraulic Platform Lifts feature dual safety restraint maintenance bars and positive stops on all four corners for maximum roll over capacity. These units also feature dual safety restraint maintenance bars and cylinder rod end protectors. These models are supplied with standard straight toe guards for surface mounting. If pit mounting is required, please specify when ordering, and beveled toe guards will be supplied at no charge. Call Beacon for optional electric toe guard pricing.
Call for custom quote for your application

See chart below and click a model number

Product Details

  • Construction: These units feature steel construction.
  • Size: Hydraulic Platform Lift features standard platform sizes ranging from 48" x 120" to 48" x 216" and maximum platform sizes ranging from 72" x 168" to 72" x 264".
  • Service Range: This Industrial Long Scissor Lift Table series is available with lowered heights of 16" or 20" and with a variety of raised heights ranging from 46" to 92".
  • Power: Each model features an externally mounted power unit.
  • Installation: Surface or pit mount will end up with different overall heights. The three vertical geometric properties to be aware of is the (1) Lowered height (2) Travel (3) Overall height. When mounting in a pit, your travel will end up as your overall height.
  • Weight: These units come in a variety of weights ranging from 6,000 to 10,400 lbs.
  • Scope: It is the customer's responsibility to meet all federal, state and local codes regarding height restrictions and safety requirements.
  • Usage: This item is made to order; therefore, delivery times are not guaranteed. Production schedules may fluctuate due to supply chain dynamics or unforeseen circumstances. Fulfillment times may vary and lead times are quoted as approximate only. A signed approval drawing is required prior to production. Freight, site preparation, installation and training are not included. The customer is responsible for ensuring the correctness of fit.
  • Capacity: The models come in a variety of capacities ranging from 30,000 to 60,000 lbs. Published capacities are rated as evenly distributed when the load is applied in the lowered position and then raised. Any applied load in the raised position, centered, end or side derates the published capacity, contact Beacon for specifications.
  • Standard: Smooth steel plate deck surface.
  • Options: Steel treadplate deck surface.
  • Limited Warranty: To keep the Hydraulic Platform Lift warranty valid you cannot cantilever the geometric ratio weight beyond the center of gravity. All units are quoted the capacity within its deck size and must keep with a uniformly distributed load.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
  • Note: Payment Terms: This product is special and requires a 20% deposit at time of order, 20% prior to shipment and balance net 30 with approved credit.

Documents
Hydraulic Platform Lift - BMLTDL Series
Model No. Travel (inches) Cap Lbs Axle Load Max, Concentrated Platform Std. Platform Max. Base Lowered Height (inches) Raised Height (inches) Approx Up Speed Motor HP Cyl. Note Price
1) BMLTDL-30-36 36 30000 22500 48x120 72x168 48x120 16 52 32 5 2 A $Call
2) BMLTDL-35-36 36 35000 26500 48x120 72x168 48x120 16 52 55 5 4 A $Call
3) BMLTDL-40-36 36 40000 30000 48x120 72x168 48x120 20 56 55 5 4 A $Call
4) BMLTDL-50-36 36 50000 40000 48x120 72x168 48x120 20 56 75 5 6 A $Call
5) BMLTDL-60-36 36 60000 48000 48x120 72x168 48x120 20 56 75 5 6 A $Call

6) BMLTDL-30-48 48 30000 22500 48x144 72x192 48x144 16 64 30 5 2 A $Call
7) BMLTDL-35-48 48 35000 26500 48x144 72x192 48x144 16 64 55 5 4 A $Call
8) BMLTDL-40-48 48 40000 30000 48x144 72x192 48x144 20 68 55 5 4 A $Call
9) BMLTDL-50-48 48 50000 40000 48x144 72x192 48x144 20 68 75 5 6 A $Call
10) BMLTDL-60-48 48 60000 48000 48x144 72x192 48x144 20 68 75 5 6 A $Call

Hydraulic Platform Lift - BMLTDL Series (continued)
Model No. Travel (inches) Cap Lbs Axle Load Max, Concentrated Platform Std. Platform Max. Base Lowered Height (inches) Raised Height (inches) Approx Up Speed Motor HP Cyl. Note Price
11) BMLTDL-30-60 60 30000 22500 48x168 72x216 48x168 16 76 45 5 2 A $Call
12) BMLTDL-35-60 60 35000 26500 48x168 72x216 48x168 16 76 80 5 4 A $Call
13) BMLTDL-40-60 60 40000 30000 48x168 72x216 48x168 20 80 80 5 4 A $Call
14) BMLTDL-50-60 60 50000 40000 48x168 72x216 48x168 20 80 100 7.5 6 A $Call
15) BMLTDL-60-60 60 60000 48000 48x168 72x216 48x168 20 80 100 7.5 6 A $Call

16) BMLTDL-30-72 72 30000 22500 48x216 72x264 48x216 16 88 45 5 2 A $Call
17) BMLTDL-35-72 72 35000 26500 48x216 72x264 48x216 16 88 80 5 4 A $Call
18) BMLTDL-40-72 72 40000 30000 48x216 72x264 48x216 20 92 80 5 4 A $Call
19) BMLTDL-50-72 72 50000 40000 48x216 72x264 48x216 20 92 100 7.5 6 A $Call
20) BMLTDL-60-72 72 60000 48000 48x216 72x264 48x216 20 92 100 7.5 6 A $Call
Notes:
A: *Standard platforms only. **Load that can be rolled over the side or end in any raised position. (Standard platform only.) ***See Power Supply Options. Oversized platforms, beveled toeguards, roller shades, accordion skirting and electrical tape switches will affect overall size. Power requirements depend upon frequency and type of operation and require specific selection. Note: Where available power supply is 208V/3PH booster transformers are required for 240V/3PH at motor, see options. Conforms to or exceeds ANSI standard MH29.1-1994.
