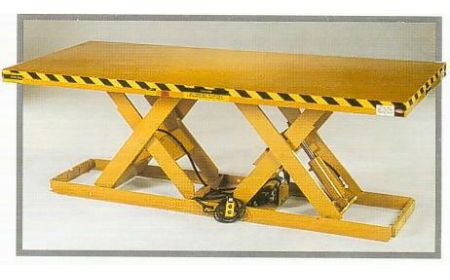

BHLTTL-100-48 Scissor Lift Table

Scissor Lift Table - Hydraulic Lift Platform - BHLTTL Series

Beacon® BHLTTL Series

Model Number:

BHLTTL-100-48



Travel (inches): 48
Cap Lbs: 10000
Edge Load Static: 3500
Edge Load Rolling: 2345
Platform Standard: 24 x 128
Platform Maximum: 48 x 168
Base: 24 x 128
Lowered Height (inches): 8
Raised Height (inches): 56
Approx Up Speed: 50
Motor HP: 1.5
Cylinders: 4

Shipping Weight (LBS): 1750

Additional Notes:  *Standard platforms only. **See options. Oversized platforms, beveled toeguards, roller shades, accordion skirting and electrical tape switches will affect overall size. Power requirements depend upon frequency and type of operation and require specific selection. Standard power supply required: 230V/1PH/60Hz. If available power supply is 115V/1PH/60Hz, a 3/4 HP motor is required. This will double the up speed. Alternate internal 3 phase power unit 208V/230V/460V available. Optional Hi-Speed 3HP 208V/230V/460V/3PH/60Hz power unit available. Speeds for Hi-Speed units will be 2/3 greater than speeds specified (multiply by 0.67).
Category: Scissor Lift Table

Prop 65 WARNING

Product Info PDF: BHLTTL-Tech-Sheet.pdf
Additional Product PDF: BHLTTL-Tech-Sheet-2.pdf

each
Scissor Lift Table - Hydraulic Lift Platform - BHLTTL Series

Beacon® BHLTTL Series

Model Number:

BHLTTL-100-48



Travel (inches): 48
Cap Lbs: 10000
Edge Load Static: 3500
Edge Load Rolling: 2345
Platform Standard: 24 x 128
Platform Maximum: 48 x 168
Base: 24 x 128
Lowered Height (inches): 8
Raised Height (inches): 56
Approx Up Speed: 50
Motor HP: 1.5
Cylinders: 4

Shipping Weight (LBS): 1750

Additional Notes:  *Standard platforms only. **See options. Oversized platforms, beveled toeguards, roller shades, accordion skirting and electrical tape switches will affect overall size. Power requirements depend upon frequency and type of operation and require specific selection. Standard power supply required: 230V/1PH/60Hz. If available power supply is 115V/1PH/60Hz, a 3/4 HP motor is required. This will double the up speed. Alternate internal 3 phase power unit 208V/230V/460V available. Optional Hi-Speed 3HP 208V/230V/460V/3PH/60Hz power unit available. Speeds for Hi-Speed units will be 2/3 greater than speeds specified (multiply by 0.67).
Category: Scissor Lift Table

Prop 65 WARNING

Product Info PDF: BHLTTL-Tech-Sheet.pdf
Additional Product PDF: BHLTTL-Tech-Sheet-2.pdf

This product is made to order for each application and requires a survey sheet. Please call Beacon at 314-487-7600.

  OPTIONS:
1) BHLTTL Option: Aluminum Treadplate, Bridge with Hinge Assy (2 items)
2) BHLTTL Option: Steel Treadplate, Bridge with Hinge Assy (2 items)
3) BHLTTL Option: Steel Treadplate Approach Ramp (1 items)
4) BHLTTL Option: Electrical (18 items)
5) BHLTTL Option: Handrails / Toeboards (4 items)
6) BHLTTL Option: Hydraulic - Power Unit Assembly (18 items)
7) BHLTTL Option: Platform (10 items)
8) BHLTTL Option: Safety Skirting (2 items)

It is the customer's responsibility to verify BHLTTL-100-48 correctness of fit for applications. It is the customer's responsibility to verify that this Scissor Lift Table - BHLTTL Series complies with all safety laws, codes and regulations.

Freight charges will be added to published pricing. Tariffs or surcharges may apply to current published pricing.
