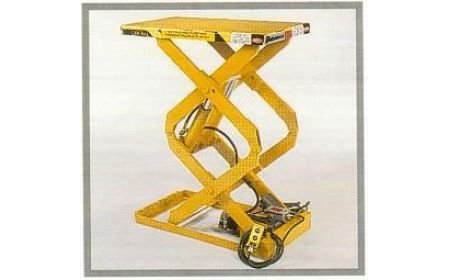

BCDL-10-36 Small Scissor Lift

Small Scissor Lift - BCDL Series

Beacon® BCDL Series

Model Number:

BCDL-10-36



Travel: 36"
Cap Lbs: 1000
Edge Load Static: 500
Platform Standard: 18 x 36
Platform Maximum: 30 x 60
Base: 18 x 36
Lowered Height (inches): 7
Raised Height (inches): 43
Approx Up Speed: 13
Motor HP: .75
Cylinders: 2

Shipping Weight (LBS): 295

Additional Notes:  *Standard platforms only. **See options. Oversized platforms, beveled toeguards, roller shades, accordion skirting and electrical tape switches will affect overall size. Power requirements depend upon frequency and type of operation and require specific selection. Portability: HLT-PORT-1 (2) retractable poly wheels and (2) wheel dolly jack.
Category: Small Scissor Lift

Prop 65 WARNING

Product Info PDF: BCDL-Tech-Sheet.pdf
Additional Product PDF: BCDL-Tech-Sheet-2.pdf

each
Small Scissor Lift - BCDL Series

Beacon® BCDL Series

Model Number:

BCDL-10-36



Travel: 36"
Cap Lbs: 1000
Edge Load Static: 500
Platform Standard: 18 x 36
Platform Maximum: 30 x 60
Base: 18 x 36
Lowered Height (inches): 7
Raised Height (inches): 43
Approx Up Speed: 13
Motor HP: .75
Cylinders: 2

Shipping Weight (LBS): 295

Additional Notes:  *Standard platforms only. **See options. Oversized platforms, beveled toeguards, roller shades, accordion skirting and electrical tape switches will affect overall size. Power requirements depend upon frequency and type of operation and require specific selection. Portability: HLT-PORT-1 (2) retractable poly wheels and (2) wheel dolly jack.
Category: Small Scissor Lift

Prop 65 WARNING

Product Info PDF: BCDL-Tech-Sheet.pdf
Additional Product PDF: BCDL-Tech-Sheet-2.pdf

This product is made to order for each application and requires a survey sheet. Please call Beacon at 314-487-7600.

  OPTIONS:
1) BCDL Option: Aluminum Treadplate, Bridge with Hinge Assy (2 items)
2) BCDL Option: Steel Treadplate, Bridge with Hinge Assy (2 items)
3) BCDL Option: Steel Treadplate Approach Ramp (1 items)
4) BCDL Option: Electrical (18 items)
5) BCDL Option: Handrails / Toeboards (4 items)
6) BCDL Option: Hydraulic - Power Unit Assembly (18 items)
7) BCDL Option: Platform (10 items)
8) BCDL Option: Safety Skirting (2 items)

It is the customer's responsibility to verify BCDL-10-36 correctness of fit for applications. It is the customer's responsibility to verify that this Small Scissor Lift - BCDL Series complies with all safety laws, codes and regulations.

Freight charges will be added to published pricing. Tariffs or surcharges may apply to current published pricing.
