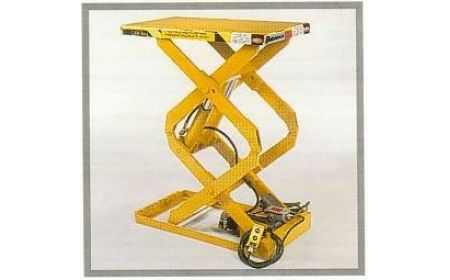

BCDL-20-36 Small Scissor Lift

Name: BCDL-20-36 Small Scissor Lift
Brand: Beacon
Availability: InStock

Beacon® BCDL Series

Model Number:

BCDL-20-36

Travel: 36"
Cap Lbs: 2000
Edge Load Static: 1000
Platform Standard: 18 x 36
Platform Maximum: 30 x 60
Base: 18 x 36
Lowered Height (inches): 7
Raised Height (inches): 43
Approx Up Speed: 26
Motor HP: .75
Cylinders: 3

Shipping Weight (LBS): 340

Additional Notes: *Standard platforms only. **See options. Oversized platforms, beveled toeguards, roller shades, accordion skirting and electrical tape switches will affect overall size. Power requirements depend upon frequency and type of operation and require specific selection. Portability: HLT-PORT-1 (2) retractable poly wheels and (2) wheel dolly jack.
Category: Small Scissor Lift

Prop 65 WARNING

Product Info PDF: BCDL-Tech-Sheet.pdf
Additional Product PDF: BCDL-Tech-Sheet-2.pdf

each

Beacon® BCDL Series

Model Number:

BCDL-20-36

This product is made to order for each application and requires a survey sheet. Please call Beacon at 314-487-7600.

OPTIONS:
1) BCDL Option: Aluminum Treadplate, Bridge with Hinge Assy (2 items)
2) BCDL Option: Steel Treadplate, Bridge with Hinge Assy (2 items)
3) BCDL Option: Steel Treadplate Approach Ramp (1 items)
4) BCDL Option: Electrical (18 items)
5) BCDL Option: Handrails / Toeboards (4 items)
6) BCDL Option: Hydraulic - Power Unit Assembly (18 items)
7) BCDL Option: Platform (10 items)
8) BCDL Option: Safety Skirting (2 items)

It is the customer's responsibility to verify BCDL-20-36 correctness of fit for applications. It is the customer's responsibility to verify that this Small Scissor Lift - BCDL Series complies with all safety laws, codes and regulations.
