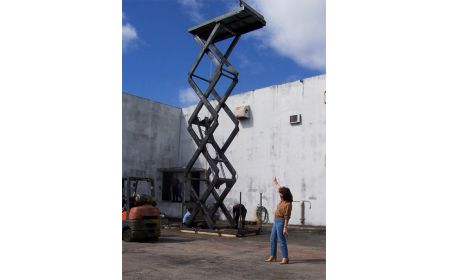

BQSL-60-240 Tall Scissor Lift

hydraulic Tall Scissor Lift - High Scissor Table - BQSL Series

Beacon® BEHU Series

Model Number:

BQSL-60-240



Travel (inches): 240
Cap Lbs: 6000
Edge Load Static: 3000
Edge Load Rolling: 2000
Platform Standard: 60 x 96
Platform Maximum: 84 x 120
Base: 60 x 93
Lowered Height (inches): 54
Raised Height (inches): 294
Approx Up Speed: 85
Motor HP: 5
Cylinders: 2

Shipping Weight (LBS): 9000

Additional Notes:  *Standard platforms. Oversized platforms, beveled toeguards, roller shades, accordion skirting and electrical tape switches will affect overall size. Power requirements depend upon frequency and type of operation and require specific selection. Standard power supply required for 5HP is 230/460/3PH/60Hz. Optional power supply for 5HP power units is 230V/1PH/60Hz (increases up speed by 33%). Note: Where available power supply is 208V/3PH, booster transformers are required for 240V/3PH at motor, see options. Conforms to or exceeds ANSI standard MH29.1-1994.
Category: Tall Scissor Lift

Prop 65 WARNING

Product Info PDF: BQSL-Tech-Sheet.pdf
Additional Product PDF: BQSL-Tech-Sheet-2.pdf
each
hydraulic Tall Scissor Lift - High Scissor Table - BQSL Series

Beacon® BEHU Series

Model Number:

BQSL-60-240



Travel (inches): 240
Cap Lbs: 6000
Edge Load Static: 3000
Edge Load Rolling: 2000
Platform Standard: 60 x 96
Platform Maximum: 84 x 120
Base: 60 x 93
Lowered Height (inches): 54
Raised Height (inches): 294
Approx Up Speed: 85
Motor HP: 5
Cylinders: 2

Shipping Weight (LBS): 9000

Additional Notes:  *Standard platforms. Oversized platforms, beveled toeguards, roller shades, accordion skirting and electrical tape switches will affect overall size. Power requirements depend upon frequency and type of operation and require specific selection. Standard power supply required for 5HP is 230/460/3PH/60Hz. Optional power supply for 5HP power units is 230V/1PH/60Hz (increases up speed by 33%). Note: Where available power supply is 208V/3PH, booster transformers are required for 240V/3PH at motor, see options. Conforms to or exceeds ANSI standard MH29.1-1994.
Category: Tall Scissor Lift

Prop 65 WARNING

Product Info PDF: BQSL-Tech-Sheet.pdf
Additional Product PDF: BQSL-Tech-Sheet-2.pdf

This product is made to order for each application and requires a survey sheet. Please call Beacon at 314-487-7600.

  OPTIONS:
1) BQSL Option: Safety Skirting (2 items)
2) BQSL Option: Aluminum Treadplate, Bridge with Hinge Assy (2 items)
3) BQSL Option: Steel Treadplate, Bridge with Hinge Assy (2 items)
4) BQSL Option: Steel Treadplate Approach Ramp (1 items)
5) BQSL Option: Electrical (18 items)
6) BQSL Option: Handrails / Toeboards (4 items)
7) BQSL Option: Hydraulic - Power Unit Assembly (18 items)
8) BQSL Option: Platform (10 items)

It is the customer's responsibility to verify BQSL-60-240 correctness of fit for applications. It is the customer's responsibility to verify that this Stationary Scissor Lift - BEHU Series complies with all safety laws, codes and regulations.
