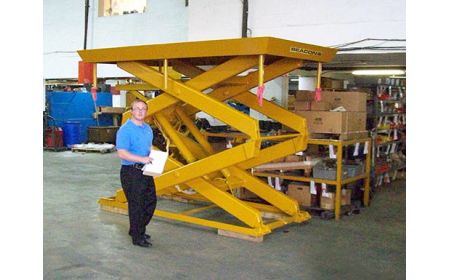

BDSL-40-144 Upright Scissor Lift

Name: BDSL-40-144 Upright Scissor Lift
Brand: Beacon
Availability: InStock

Upright Scissor Lift - Scissor Lift Platform - BDSL Series

Beacon® BDSL Series

Model Number:

BDSL-40-144

Travel (inches): 144
Cap Lbs: 4000
Edge Load Static: 2000
Edge Load Rolling: 1340
Platform Standard: 54 x 108
Platform Maximum: 72 x 132
Base: 54 x 108
Lowered Height (inches): 16
Raised Height (inches): 160
Approx Up Speed: 40
Motor HP: 4.8
Cylinders: 2

Shipping Weight (LBS): 4000

Additional Notes: *Standard platforms. Oversized platforms, beveled toeguards, roller shades, accordion skirting and electrical tape switches will affect overall size. Power requirements depend upon frequency and type of operation and require specific selection. Standard power supply for 3/4and 1 1/2HP power Unit is 230V/1PH/60hz. Optional power supply for 3/4and 1 1/2HP Power Unit is 208/230/460/3PH/60Hz . 115V/1PH/60Hz power supply requires a 30 amp circuit and 3/4HP motor is required. This will double the up speed. Standard power supply for 4.8HP power units is 230/460/3PH/60Hz. Optional power supply for 4.8HP power unit is 230V/1PH/60Hz (increases up speed by 33%). Note: Where available power supply is 208V/3PH, booster transformers are required for 240V/3PH at motor, see options. Conforms to or exceeds ANSI standard MH29.1-1994.
Category: Upright Scissor Lift

Prop 65 WARNING

Product Info PDF: BDSL-Tech-Sheet.pdf
Additional Product PDF: BDSL-Tech-Sheet-2.pdf

each

Beacon® BDSL Series

Model Number:

BDSL-40-144

This product is made to order for each application and requires a survey sheet. Please call Beacon at 314-487-7600.

OPTIONS:
1) BDSL Option: Safety Skirting (2 items)
2) BDSL Option: Aluminum Treadplate, Bridge with Hinge Assy (2 items)
3) BDSL Option: Steel Treadplate, Bridge with Hinge Assy (2 items)
4) BDSL Option: Steel Treadplate Approach Ramp (1 items)
5) BDSL Option: Electrical (18 items)
6) BDSL Option: Handrails / Toeboards (4 items)
7) BDSL Option: Hydraulic - Power Unit Assembly (18 items)
8) BDSL Option: Platform (10 items)

It is the customer's responsibility to verify BDSL-40-144 correctness of fit for applications. It is the customer's responsibility to verify that this Upright Scissor Lift - BDSL Series complies with all safety laws, codes and regulations.
