Additional Hydraulic Upender
(12 Models)

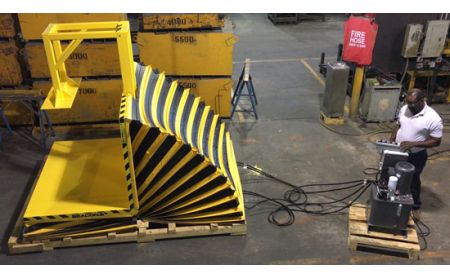

BHUE-12-90-CL Hydraulic Upender

Hydraulic Upender -  Upender Rotator - BHUE Series

Beacon® BHUE-CL Series

Model Number:

BHUE-12-90-CL



Angle of Tilt: 90°
Capacity (LBS): 12,000
Platform Standard Widths: 30"-48"
Platform Maximum Lengths: 50"-72"
Lowered Height: 18"
Motor HP - Tilt: 5
Motor HP - Clamp: 1
Cylinder Qty - Tilt: 2
Cylinder Qty - Clamp: 1

Additional Notes:  *Priced as the standard platform size, contact marketing for a larger platform size quote. See Options and Accessories for wall mount push button control, key lockout, foot operated control, limit switch, ball transfer top, electric toe guards, accordion skirts, beveled toe guards for pit mounting.
Category: Hydraulic Upender

each
Hydraulic Upender -  Upender Rotator - BHUE Series

Beacon® BHUE-CL Series

Model Number:

BHUE-12-90-CL



Angle of Tilt: 90°
Capacity (LBS): 12,000
Platform Standard Widths: 30"-48"
Platform Maximum Lengths: 50"-72"
Lowered Height: 18"
Motor HP - Tilt: 5
Motor HP - Clamp: 1
Cylinder Qty - Tilt: 2
Cylinder Qty - Clamp: 1

Additional Notes:  *Priced as the standard platform size, contact marketing for a larger platform size quote. See Options and Accessories for wall mount push button control, key lockout, foot operated control, limit switch, ball transfer top, electric toe guards, accordion skirts, beveled toe guards for pit mounting.
Category: Hydraulic Upender

This product is made to order for each application and requires a survey sheet. Please call Beacon at 314-487-7600.

  OPTIONS:
1) Hydraulic Upender Options (15 items)

It is the customer's responsibility to verify BHUE-12-90-CL correctness of fit for applications. It is the customer's responsibility to verify that this Hydraulic Upender Clamp - BHUE-CL Series complies with all safety laws, codes and regulations.

Freight charges will be added to published pricing. Tariffs or surcharges may apply to current published pricing.
